PROSHI 2" and 3" angle orbital sander, 3-inches random orbital air sander, pneumatic sander for auto sanding tools, dual-action polisher, angle head for tight work areas
4 sold in last 24 hours
- Professional mini orbital sander with 2" and 3" hook and loop sanding pad (Velcro Backing pad)
- Suitable for iron, wood, plastic, metal, rubber, stone, marble and other materials grinding, fine polishing.
- A built-in regulator in sander allows you to adjust the speed with which you work to satisfy your different sanding, polishing and waxing requirements, for quick and accurate results.
- Different type of sandpaper can be installed with a different type of disc.
- Smooth down hard surfaces or sharp edges with professional air random orbital sander.
Tags |
Estimated shipping
Select a product to estimate shipping.2-inches and 3-inches angle orbital air sander feature:
This high quality 2" air sander with one extra 3" hook & loop sanding pad is a professional air tool for sanding, polishing, and waxing. Low vibration rate and low energy consumption.
It applies to auto bodywork and furniture and more. Especially ideal for spot sanding focus areas.Small size, lightweight, high stability,
High speed, swirl-free super smooth and easy to one-hand operation. With the adjustable valve of the air inlet, you can change airflow to control the sanding polishing waxing speed. Rear exhaust can keep sander cool down quickly and make it work in a long time.
this tool is ideal for smoothing and blending body filler and feather edging before you begin painting. Eccentric double-rotation polishing method to make the polishing effect more uniform and smooth.
Suitable for iron, wood, plastic, metal, rubber, stone, marble and other materials grinding, fine polishing.
A built-in regulator in sander allows you to adjust the speed with which you work to satisfy your different sanding, polishing and waxing requirements, for quick and accurate results.
Different types of sandpaper can be installed with different type of discs.

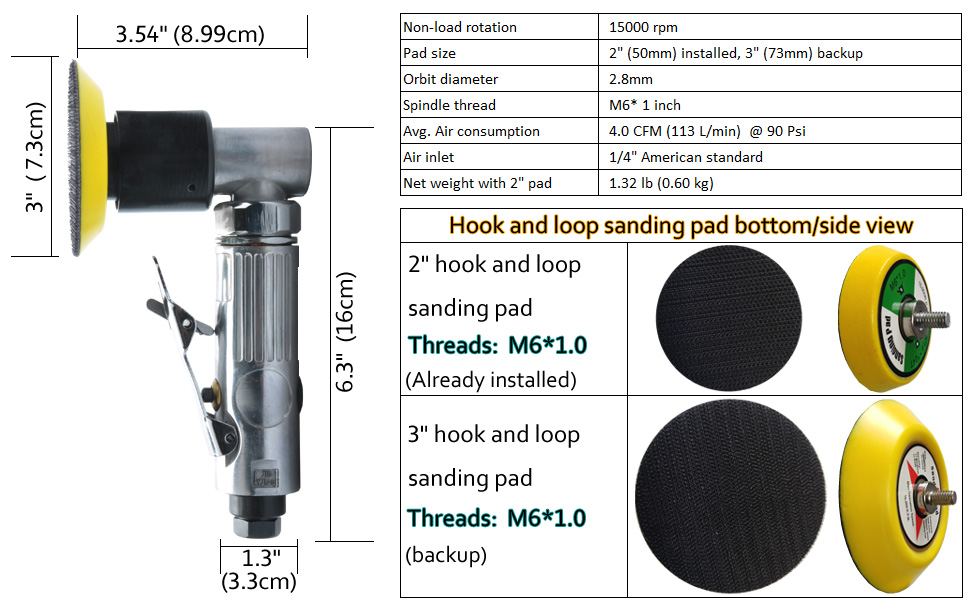

2 -inches and 3-inches angle orbital air sander technical specifications:
Pad size: 2" (50mm) and 3" (73mm) hook and loop sanding pad.
Polishing method:Eccentric double-rotation.
Orbit Diameter: 2.8mm.
Spindle thread: M6*1 inch.
Free Speed: 15,000RPM.
Air Consumption: 4 CFM (113 L/min).
Air Inlet: 1/4" American standard.
Air Pressure: 90 PSI.
Exhaust: Rear End.
Weight: 1.32 lbs (0.60kg).
What's in the Box:
PROSHI brand angle orbital air sander 1 pcs.
2-inches (50mm) hook and loop pad 1 pcs installed.
3-inches (73mm) hook and loop pad 1 pcs backup.
PIN 1 pcs use for replacing hook and loop pad.
Instruction Manual 1 pcs.
American standard 1/4 NPT quick connector 1 pcs.
2" and 3" angle orbital air sander detailed
Kindly reminder:
Before you use the air sander, please add 2-3 drops of oil from air quick connector and please allow the tool to run for a few seconds after filling to make sure it works well. (oiler not included in our box)
This tool is intended to be operated as a handheld tool and is air-powered. It requires an air compressor that will provide a clean lubricated air, where the air hose is connected to the tool when the tool is running.
Different angle views for 2" and 3" angle orbital air sander
Safe pressure plate type start-stop switch for safer users and higher reliability
Stepless speed control knob switch, according to different purposes, choose the different speed to meet different needs
The 2-inches or 3 inches hook and loop sanding pad easy replaced, that is lightweight and suitable for small areas of grinding and polishing
Before use, add 2-3cc #60 pneumatic oil to the air inlet to make the fan blade better lubricated. the cylinder cooling then maintains the torque and delays the life of the machine
How to replace hook and loop sanding pad for angle orbital air sander
Replace sanding pad step one
Find the small hole on the top of the angle orbital sander. If you don't find the hole near the outside, use the PIN to hold the rotating block inside. Rotate it a little to find it, then insert it into the hole with the PIN.
Replace sanding pad step two
Hold the PIN, do not let the PIN slide, rotate the sanding pad in the direction of the arrow until the disk is removed from the angle track mill

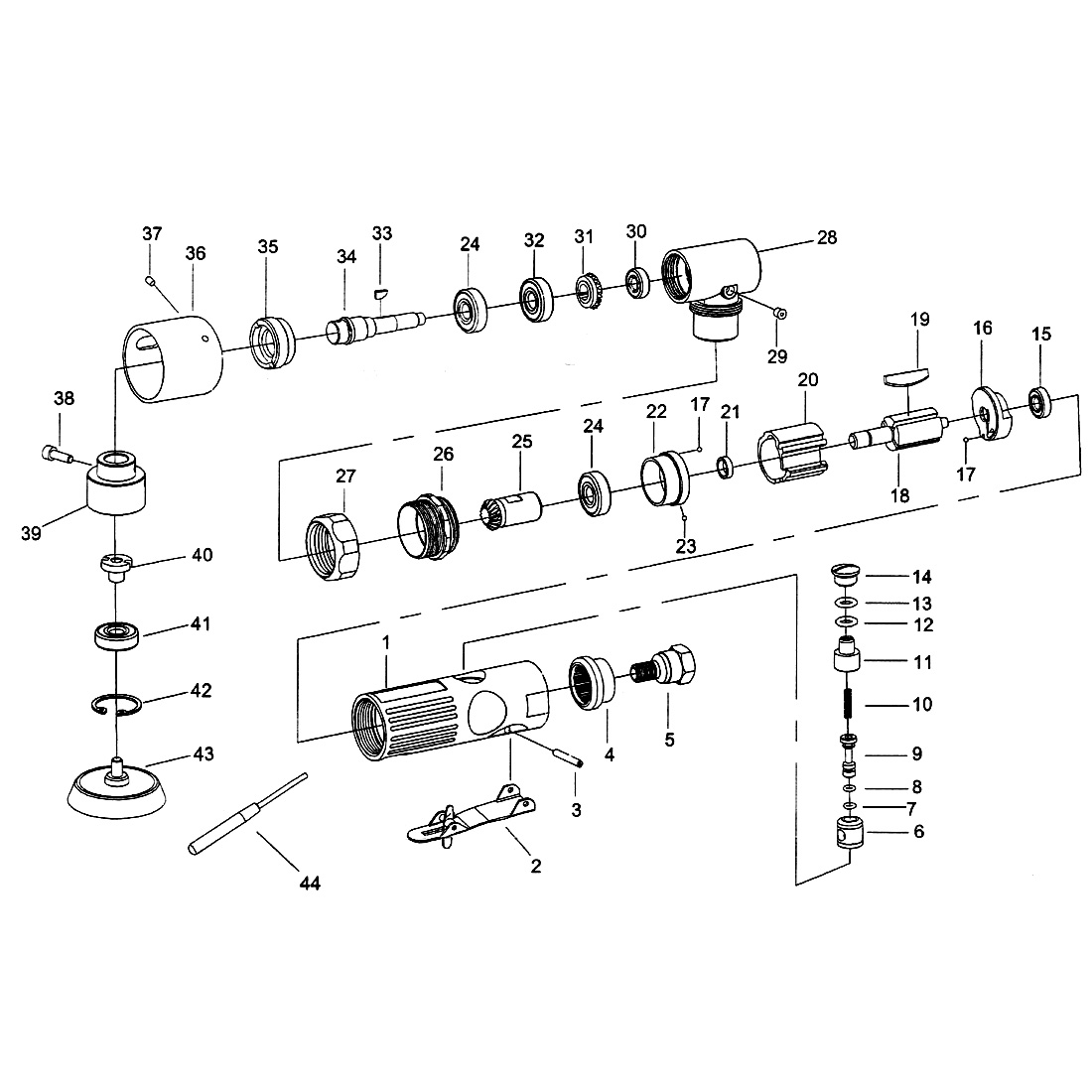

Internal eccentric view for angle orbital air sander
You can find how is the structure for Internal eccentric view of angle track sander
Replace sanding pad step three
Continue to withstand the PIN, do not let the PIN slide, according to the direction of the arrow in the picture, installing the new sanding pad to angle orbital sander
Instruction manual for angle orbital air sander
Please check off all tightening parts of the tools to be in good condition before operation.
Working pressure to be 6.3 kg/cm3 (90PSI) at operation.
Please refer to Figure 1 for the tool installation. To install a filter and a lubricator/oiler at an air outlet
The best hand stress on the tool is from 5Kg to 7Kg when operation.
Release the air supply when replacing the sandpaper or the backing pad.
Wear protection glasses, eye protector, dust mask and gloves at operation.
Have a short break in every 30minutes to avoid any possible injury due to tiredness.
Do not have free rotating at high speed to avoid possible injury to the human body and possible tool damage.
Do not touch the rotating part of the tool with your hand or your body at operation.
Start your sanding job after you fit the sanding pad flat on the surface you are working on. Please refer to Figure 2.
Routine maintenance for angle orbital air sander
Stop your Job when finding any irregular sound or vibration at operation and then check and repair the tool.
Because you are using clean compressed air at operation. Use an air filter at the air installation to clean the dust out of the compressed air.
Drop some Oil to the inlet of the tool and then run the tool slowly for a minute and finally start your work...Auto Lubricator/oiler is recommended.
Any dirt dust inside the motor may result in slow rotation even block running, at this time, try to drop some oil from the inlet, see whether solve the problem or return to the seller for maintenance.
Do release the water out of the air compressor and air hose after an operation.
Maintain tools with care. Keep tools clean for better and safe performance, follow instructions for lubricating. Inspect tools cords and air hoses periodically, if damaged, have them repaired by an authorized technician.
Product details
| Main Specification | |
|---|---|
| Manufacturer | PROSHI |
| Unit Count | 1 Count |
| Maximum Rotational Speed | 15000 rpm |
| AC Adapter Current | 3 A |
| Grit Type | Fine |
| Brand | PROSHI |
| UPC | 616010001137 |
| Number of Items | 1 |
| Shape | angular |
| Included Components | 1 x 1/4" NPT quick connector，1*2 inch sanding pad，1*3 inch sanding pad，1* pin for change pad |
| Power Source | Air-Powered |
| Item Weight | 1.4 Pounds |
| Technical Details | |
| Disc Diameter | 3 inches |
| Amperage Capacity | 3 A |
| Item details | |
| Model Number | PSX10001 |
| Others | |
| Product Type | Sanders |
