Compressed Air Piping System with 3/4 Inch ID x 200 feet 5-Way Multi-Outlet Aluminum Manifolds with individual Pressure Gauge HDPE Tubing Shop Air Line Kit, Air Compressor Line Kit | 200 PSI | 9120G
3 sold in last 24 hours

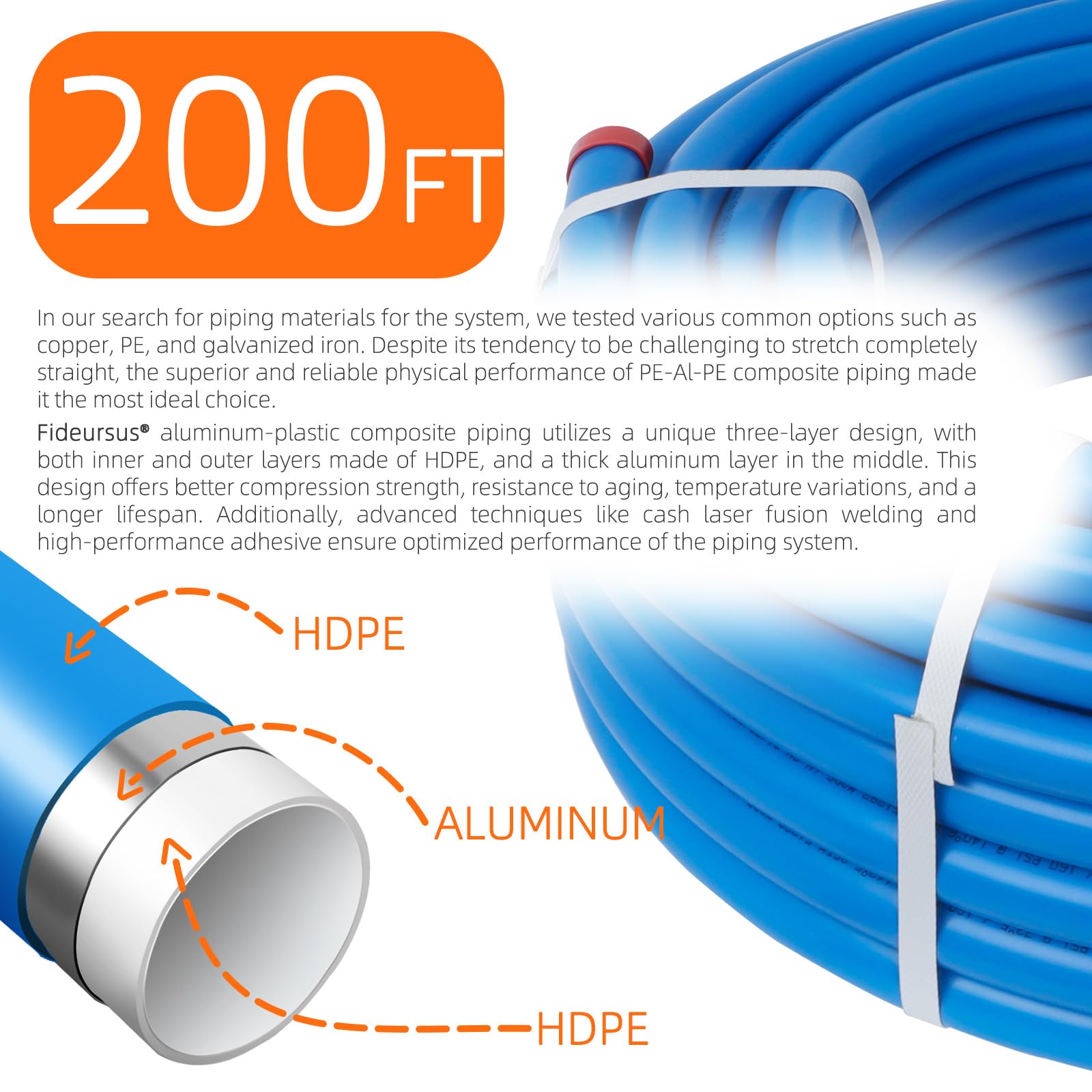

- [Heavy Duty] Our air compressor line 200 feet (with Pressure Gauge) kit features a three-layer HDPE pipe (HDPE-AL-HDPE) crafted from copper and nickel for unparalleled leak-proof pressure performance. With smooth interior walls, our piping rolls outshine traditional iron or PVC piping, ensuring rust-free operation and heightened efficiency. It reliably maintains pressure at 200 psi@73F / 160 psi@140F and meets ASTM F1282, F1974 standards.
- [Flexible Fittings & Pipes] The FIDEURSUS air line kit boasts a 1/4” NPT port on the front & right front of the manifold, complemented by 1/2“ NPT ports on the top, left front, and back, as well as a 3/8 NPT port at the bottom (for connecting the Drain valve), catering to diverse needs. Equipped with 1/4“ & 1/2” couplers, the flexible 3/4-inch pipe bends easily to desired shapes with a bending radius of 6-8 inches. For tighter bends, an L-Fitting can be added in the middle.
- [Ideal for Shop & Garage] Engineered for easy installation in a range of settings, from small shops and farms to expansive manufacturing facilities, our Semi-Flexible Compressed Air Tubing delivers clean compressed air, inert gas & vacuum. Its straightforward installation allows for planned positioning of the air compressor and desired compressed air outlet location.
- [Adaptable Layout] Our pipes are flexible, enabling various layouts and inspiring creativity. Equipped with two types of anchors, our system can be easily installed on drywall, brick walls, ceilings, or even within walls. Enjoy the corrosion resistance of HDPE pipes, which can be painted in your preferred color and even buried in soil.
- [Easy Installation] No glue or welding necessary during installation. Basic accessories come included, requiring only a screwdriver & two adjustable wrenches. Follow our step-by-step instructions for seamless setup and operation. Our customer service team is available 24/7 to assist with any product-related queries.
Estimated shipping
Select a product to estimate shipping.Typical Layout
The Fideursus air compressor piping kit boasts robust compatibility. If your workshop doesn't already have an air compression system, you can build your custom system from scratch to meet your needs. Alternatively, it can seamlessly integrate with existing systems for easy expansion or layout modifications.
Air compressor piping in garage
The use of air piping system in workshop is very common and most professional workshops have already used these systems. If you need torque to remove tires or lug nuts from vehicles, dual wheels, or to repair equipment, then you need a reliable compressed Air Piping System. There’s no other safe way to apply the strength needed in these positions.
Air compressor lines for Farms
More and more farmers have equiped their farms with S hop Air Line Kit . The installation time of FIDEURSUS system is half that of traditional systems. Also our air compressor piping kit are lighter, softer & easier to install than traditional pipe systems(iron and copper pipes ). No additional equipment is needed for hoisting.
Compressed air lines for Factorys
Pneumatic tools are widely used in various types of factories. The inner wall of FIDEURSUS Air Compression System is smooth, which can support a large number of pneumatic tool to run in the system at the same time and can provide stable compressed air even for long-distance transmission.
Air hose system for Breweries
FIDEURSUS Compressed Air System can provide clean and stable compressed air or inert gas for various equipment in brewery.
Cautions : Please do not application requires gas to be directly injected into the food product.
Installation Instruction
Easy Installation
CUT
CUT the tubing square with the cutter,
Rotating wrist while cutting.
BEVEL

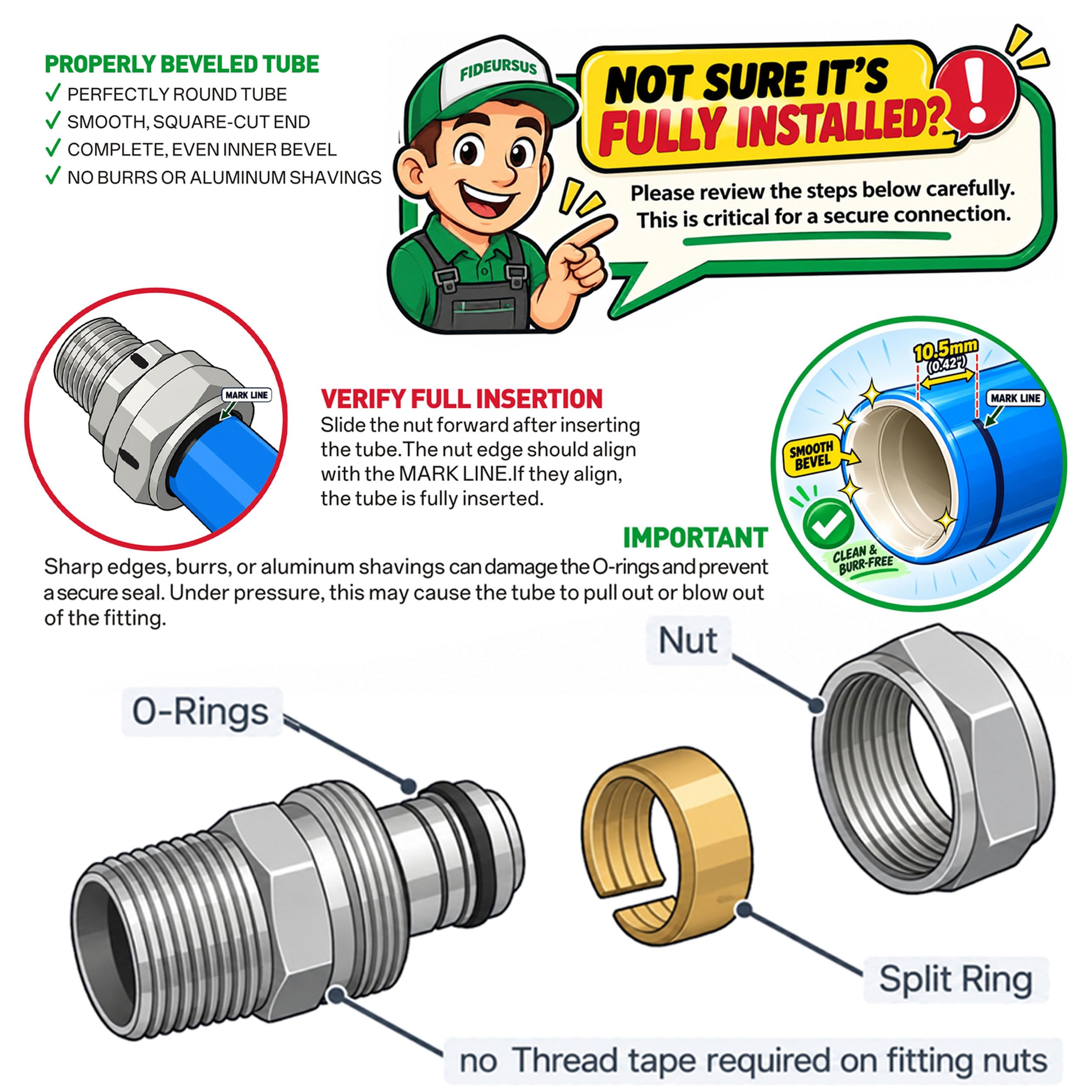

BEVEL the inside of the tubing by inserting the reaming tool and rotating it at least 3 full turns.
PUSH & TURN
PUSH the fitting onto the tubing and fully against the shoulder of the fitting.
TURN the nut hand tight. put a reference mark on the nut and fitting body.
TIGHTEN
TIGHTEN the nut with wrench a minimum 3/4 of a turn or until tight.
PARTS LIST:
#23030 1/2" Inlet,1/2" & 1/4" Outlet Female NPT Aluminum Manifold*5

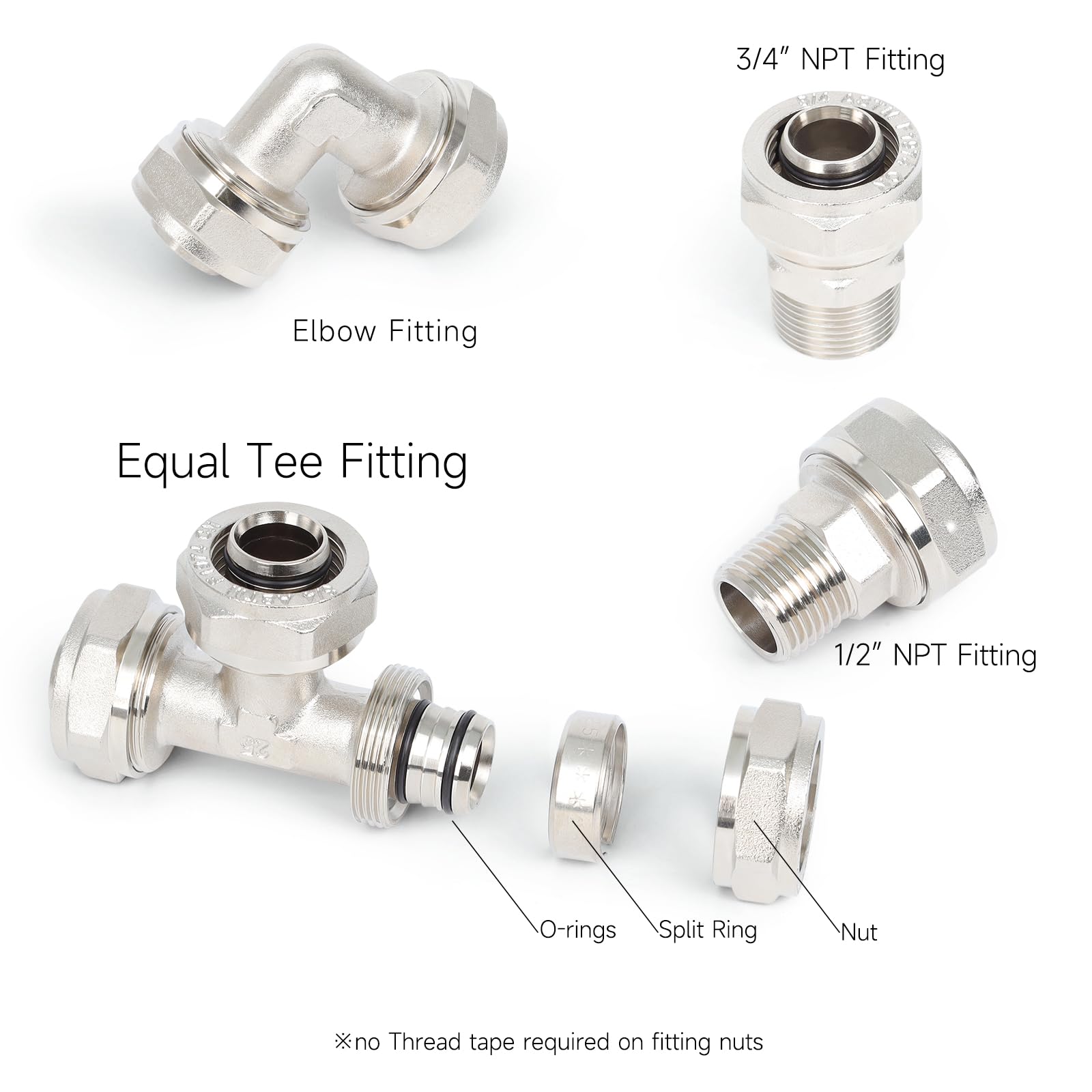

#F3022 3/4" 90 Degree Elbow Fitting *4
#F3024 3/4" Equal Tee Fitting *4
#F3023 3/4" Tubing ×3/4” NPT Straight Fitting *1
#F3031 3/4" Tubing ×1/2” NPT Straight Fitting *5
#23042 3/8" NPT Drain Valve *5

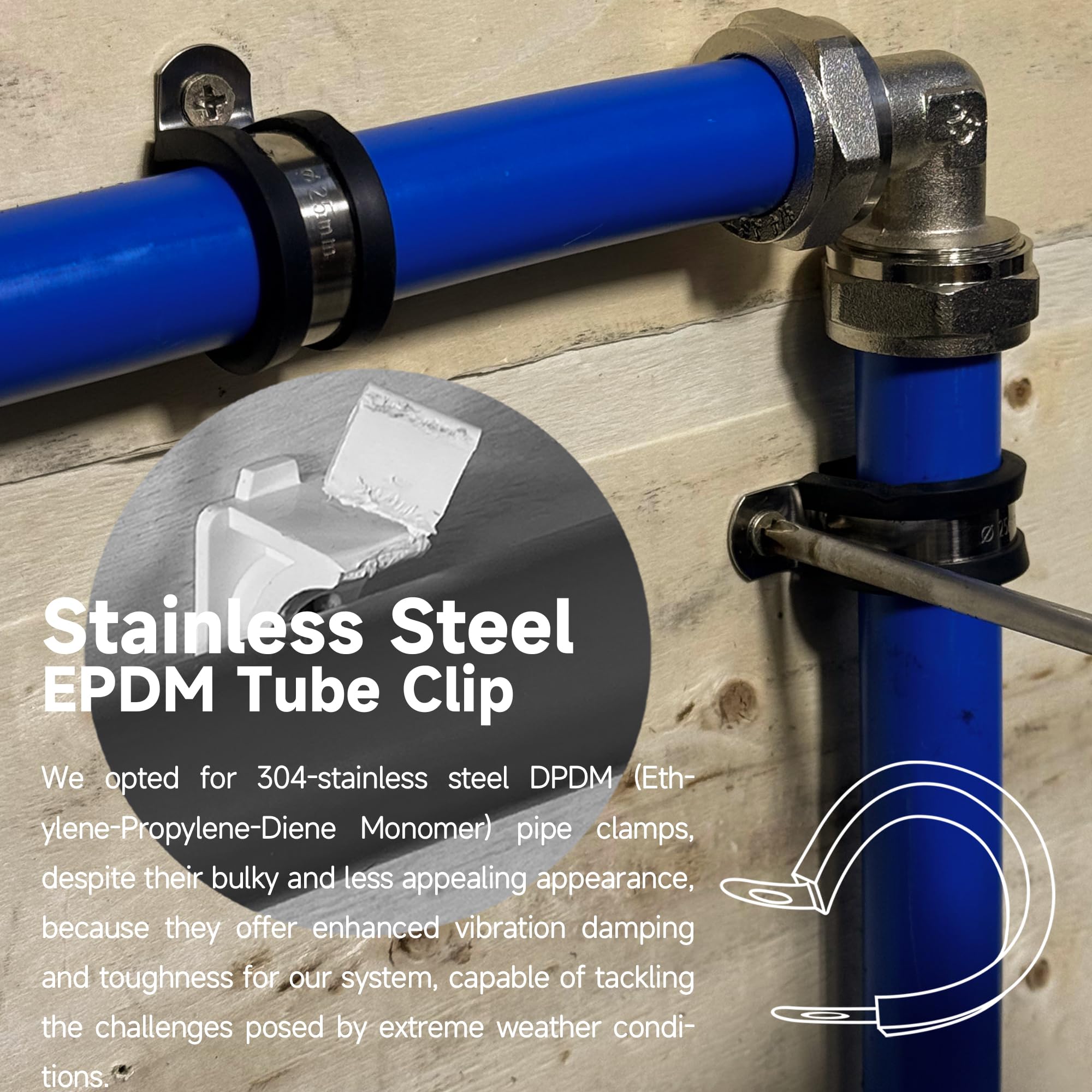

#23104 Tube Clip(20/pk)*2
#23051 1/4" NPT Plug *10
#23031 1/2" NPT Plug *10
#F7010 200ft 3/4" HDPE Pipe *1
#23101 Fasteners(Screw,Anchor,Drywall Anchor 35/pk)*2
#23015 Spare O-rings *2
#23103 Bevel Tool *1
#23102 Pipe cutter *1 , Thread Tape *5, Hex Keys *1
(3/4” NPT Straight Fittings and 1/2” NPT Straight Fittings Look Similar.Please identify each size carefully before installation.)
Product details
| Main Specification | |
|---|---|
| Included Components | Pressure Gauge Aluminum Block 1/2″ Tubing Inlet x 1/2″ &1/4” Female NPT Outlet or 3/4" 90 Degree Elbow Fitting or 3/4" Equal Tee Fitting or 3/8" NPT Drain valves or 3/4" Tubing x3/4" NPT Fitting or 3/4" Tubing x1/2" NPT Fittings 200FT |
| Manufacturer | Fideursus |
| Unit Count | 200 Feet |
| Item Length | 200 feet |
| Brand | Fideursus |
| Product Dimensions | 20.67"L x 20.67"W |
| Material | High Density Polyethylene (Hdpe) |
| Colour | Blue |
| Item Weight | 18.14 kg |
| Product information | |
| Number of Packs | 1 |
| Set Name | Shop Air Line Kit |
| Technical Details | |
| Material Type | High Density Polyethylene (HDPE) |
| Maximum Pressure | 200 psi |
| Others | |
| Product Type | Air-Compressor Accessories |
| Item Dimensions L x W | 20.67"L x 20.67"W |
