2Set 120/230V Single Phase On Off Switch for Table Saw with Deep Switch Box
14 sold in last 24 hours

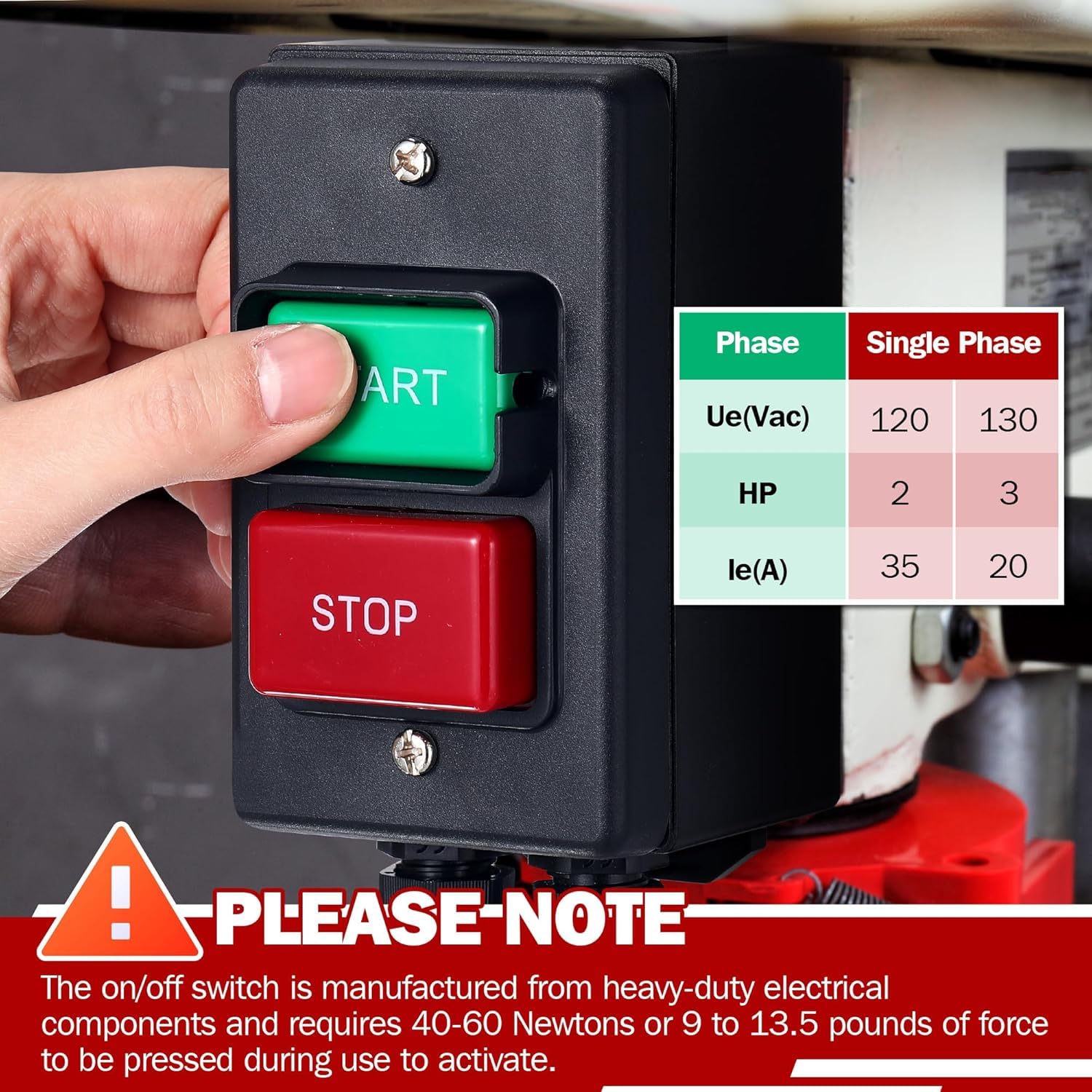

- [Standard Specifications]: Dual Voltage: 120V/230V; Single Phase Rated Current: 2HP/35 Amps at 120V; 3HP/20 Amps at 230V, comes with deep switch box hardware and screws for gang box installation (Please note: Single phase on/off switches made of heavy duty electrical components require 40-60 Newtons or 9 to 13.5 pounds of force to activate)
- [Efficient Power Control]: Effortlessly control power supply with our 110/220V Single Phase On/Off switch, Provides you with a master or emergency power off safety switch box designed to safeguard your woodworking machines, the start button can be locked to prevent unauthorized use, makes switching on/off has been even simpler
- [Push Button Power On Off Switch]: Router table switch features a simplistic, color coded design with indented/bump style buttons to signify the switch has been opened or closed. It's also extremely easy to install and use: Push the green start to turn your machine on. Push the red stop button to utilize the panel as a master shut off switch

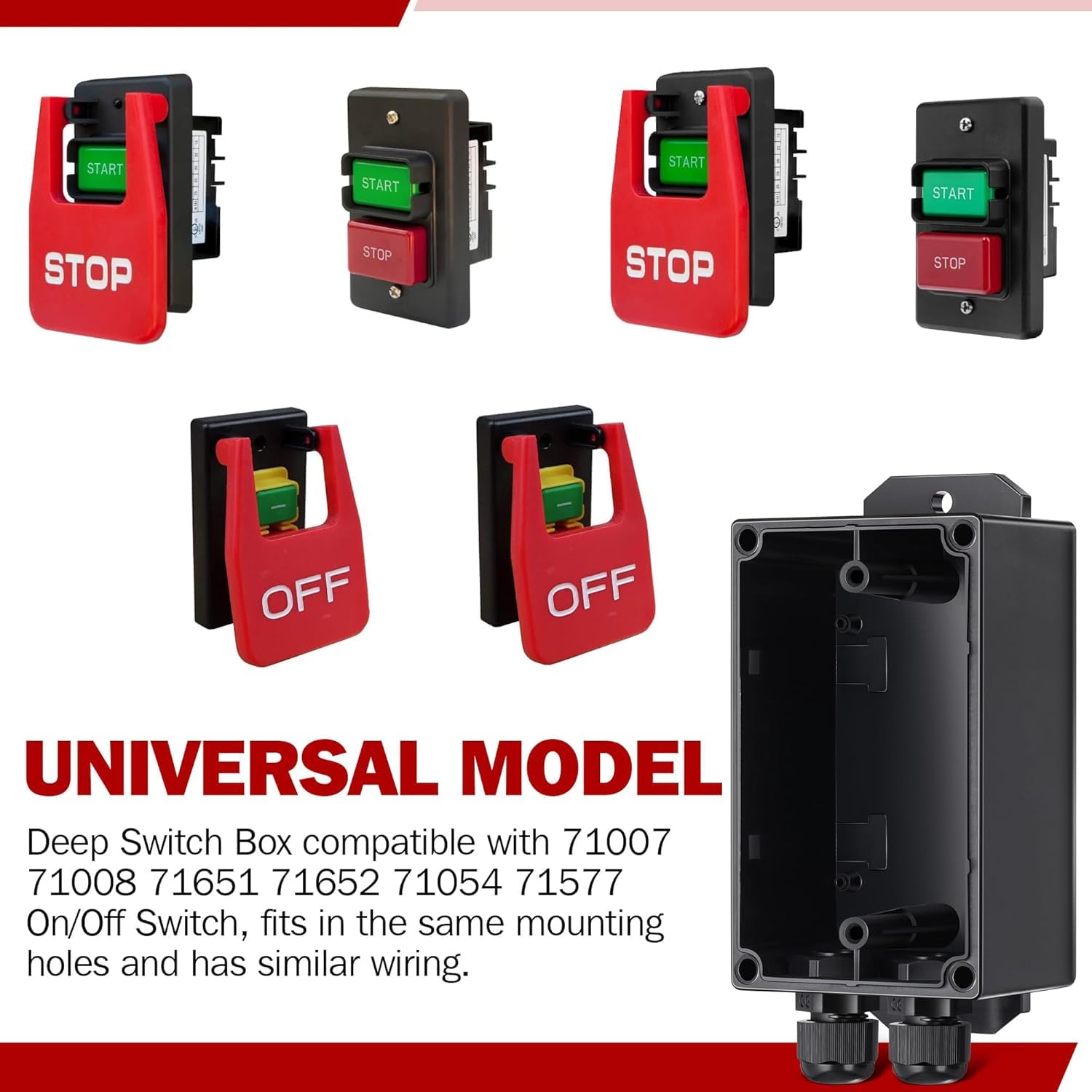

- [Package Includes]: 2 sets 110V/120V single phase on/off switch with Deep Switch Box Hardware, comes with 8 pcs 6-32 mounting screws, when installing our included 71008 switch into deep gang boxes, and standard gang boxes with extension ring or other installations requiring 6-32 screws
- [Wide Applications]: replaces old or damaged router table switches and works with a wide range of popular name brand table saws, drill presses, belt sanders, jointer, dust collectors and other power tools with reliable stops in both the on and off position
Estimated shipping
Select a product to estimate shipping.Keep your table saw and other woodworking tools safe and easily accessible with the Dreyoo 2Set 120/230V Single Phase On/Off Switch. This robust switch is designed for reliable power control and simple operation, making it a valuable addition to your workshop.
Key Highlights
- Dual Voltage Compatibility: Operates on both 120V and 230V, offering flexibility for various power sources.
- Secure Power Shut-Off: Includes a lockable start button for enhanced safety and prevents accidental activation.

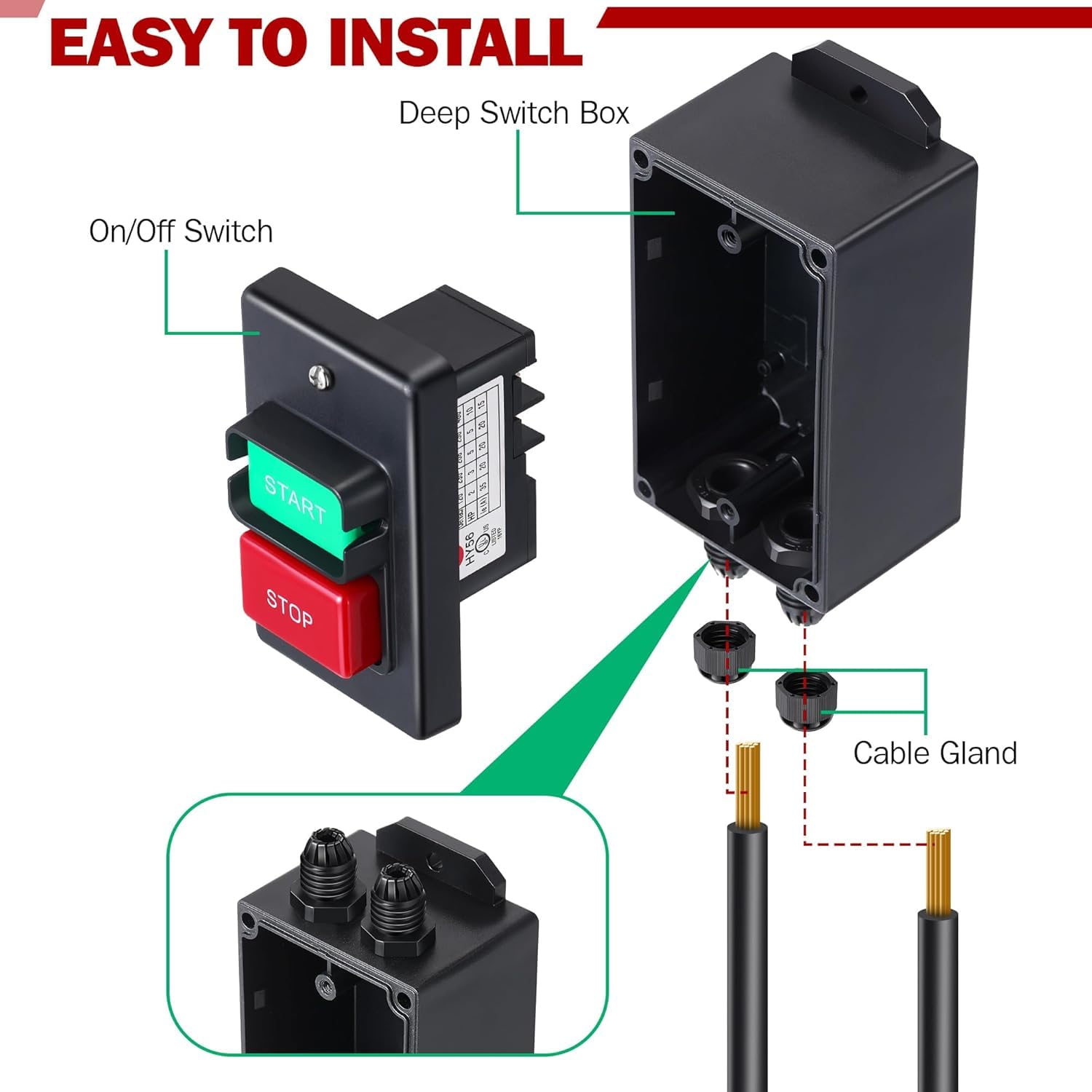

- Easy Installation: Designed for straightforward installation with included deep switch box hardware and screws.
- Clear Operation: Features color-coded, indented buttons for immediate visual feedback on switch status.
- Heavy-Duty Construction: Built with durable electrical components, requiring a specific activation force (40-60 Newtons).
Useful Facts
- Operating Voltage: 120 volts / 230 volts
- Current Rating: 35 Amps (120V), 20 Amps (230V)
- Contact Type: On/Off Switch
- Dimensions: 7.09 x 5.91 x 4.13 inches
- Upper Temperature Rating: 80 °C
Good Fit For
- Table Saws
- Router Tables
- Drill Presses
- Belt Sanders
- Jointers
- Dust Collectors
Product details
| Main Specification | |
|---|---|
| Compatible Devices | Table Saws or Drill presses or Dust Collectors or Router Tables or Belt Sanders or Jointers |
| Manufacturer | Dreyoo |
| Unit Count | 2 Count |
| Item dimensions L x W x H | 7.09 x 5.91 x 4.13 inches |
| Control Method | Push Button |
| Contact Material | As Shown |
| Contact Type | On/Off Switch |
| Current Rating | 35 A |
| Operating Voltage | 120 Volts |
| Terminal | Spade |
| Circuit Type | 1-Way |
| Brand | Dreyoo |
| Control Type | Push Button |
| Number of Items | 2 |
| Operation Mode | on and off |
| Included Components | As Shown |
| Upper Temperature Rating | 80 °C |
| Material | as shown |
| Connector Type | Botton |
| Mounting Type | Wall Mount |
| Item Weight | 1.8 Pounds |
| Product information | |
| Switch Type | ON/OFF |
| Technical Details | |
| Part Number | DR-Dreyoo-1940 |
| Model | DR-Dreyoo-1940 |
| Material Type | as shown |
| Number of Positions | 1 |
| Measurements | |
| Item Dimensions | 7.09 x 5.91 x 4.13 inches |
| Others | |
| Product Type | Table Saw Accessories |
