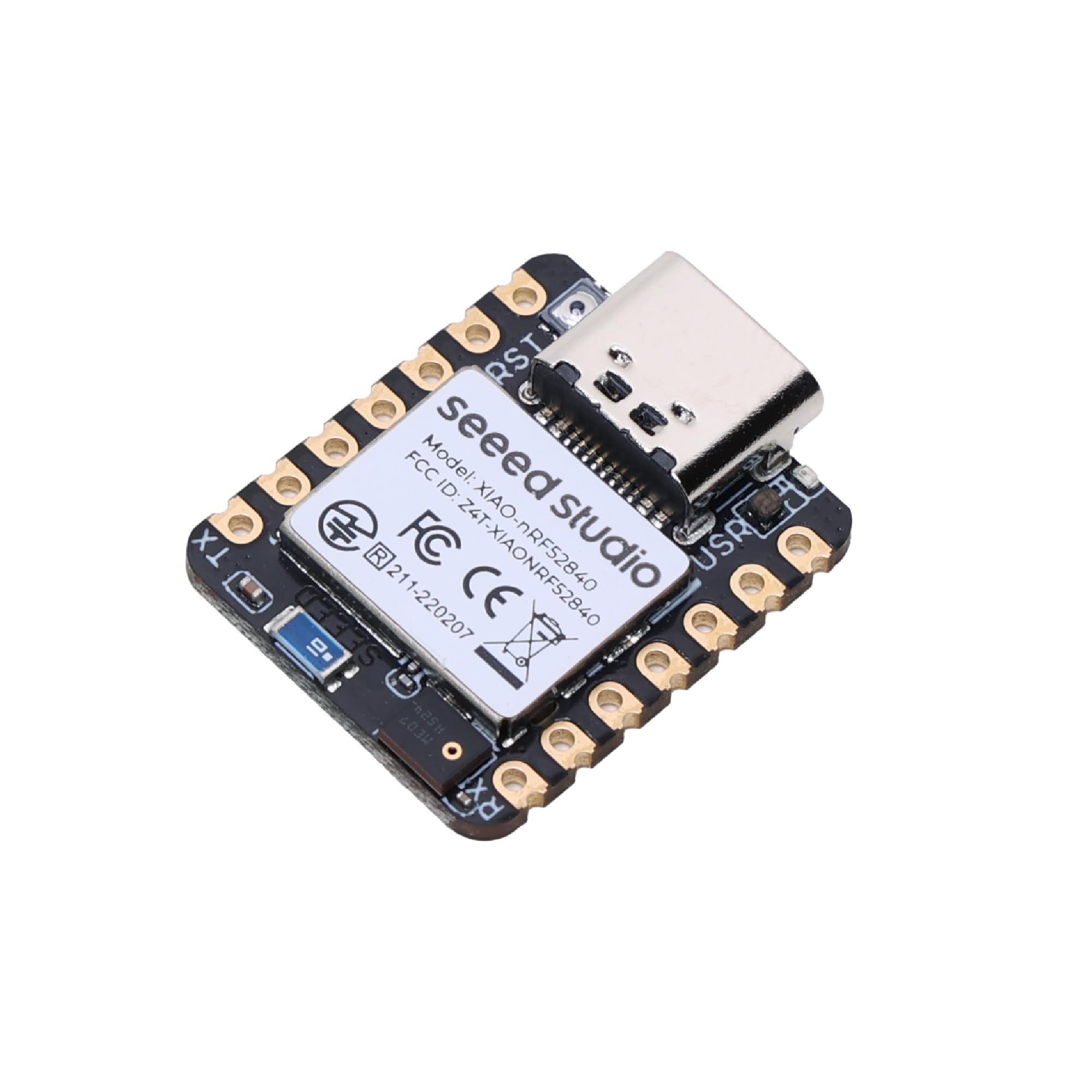

Seeed Studio XIAO nRF52840 - Supports Arduino/CircuitPython - Bluetooth5.0 NFC, with Onboard Antenna, Microcontroller with Rich Interface for Tiny Machine Learning.
12 sold in last 24 hours
- 📌【Powerful CPU】As the first wireless product in the Seeed XIAO family, Seeed Studio XIAO nRF52840 has equipped a powerful Nordic nRF52840 MCU which is designed in a Bluetooth 5.0 module, built around 32-bit ARM Cortex-M4 CPU with Floating-Point Unit(FPU) operating at 64Mhz.
- 📌【Wireless Capabilities】XIAO nRF52840 has Bluetooth 5.0 NFC module with an onboard antenna. With the capabilities of wireless connection, it still remains the Seeed XIAO series classic form-factor of small and exquisite which can be used for wearable devices and Internet of Things projects.
- 📌【Rich Interface】Firstly, the Near Field Communication(NFC) is functional on the board. Secondly, there is a tiny and elegant reset button on one side of the Type-C interface. On the other side, it is designed in a three-in-one LED along with power LED. It supports UART, IIC, and SPI all three common serial ports. Same as Seeed XIAO RP2040, it has an onboard 2 MB flash which means it can also be programmed by Arduino, MicroPython, CircuitPython, or other program languages.
- 📌【Ultra-low Sleep Power】5 μA, deep sleep model with battery charging chip: BQ25101 chip supported lithium battery charge management.
- 📌【Ultra-small Size】21 x 17.5mm, Seeed Xiao series classic form-factor for wearable devices. Part List: Seeed XIAO BLE nRF52840*1/7 Pins Header*2.
Tags |
Estimated shipping
Select a product to estimate shipping.As the first wireless product in the Seeed XIAO family, Seeed XIAO BLE has equipped a powerful Nordic nRF52840 MCU which is designed in a Bluetooth 5.0 module, built around 32-bit ARM Cortex-M4 CPU with Floating-Point Unit(FPU) operating at 64Mhz. With the capability of wireless connection, it still remains the Seeed XIAO series classic form-factor of small and exquisite which can be used for wearable devices and Internet of Things projects. Furthermore, it only costs 5 μA in the deep sleep model and it supports battery charge management because of the BQ25101 chip. To better support IoT and TinyML AI projects, there is an advanced version "Seeed XIAO BLE Sense" that carries both 6-axis IMU and PDM microphones.
Compare to XIAO RP2040, XIAO BLE has a richer interface. The first thing to note is that the Near Field Communication(NFC) is functional on the board. Secondly, there is a tiny and elegant reset button on one side of the Type-C interface. On the other side, it is designed in a three-in-one LED along with a power LED. There are 11 digital i/o that can be used as PWM pins and 6 analog i/o that can be used as ADC pins. It supports UART, IIC, and SPI all three common serial ports. Same as Seeed XIAO RP2040, it has an onboard 2 MB flash which means it can also be programmed by Arduino, MicroPython, CircuitPython, or other program languages.
| Main Specification | |
|---|---|
| Compatible Devices | Computers (PCs, laptops, tablets) or microcontrollers (Arduino) or and other devices that can communicate via USB or wirelessly |
| Manufacturer | seeed studio |
| Unit Count | 1 Count |
| Item dimensions L x W x H | 21L x 18W x 21H Millimeters |
| Brand | seeed studio |
| Number of Items | 1 |
| RAM Memory Technology | RAM |
| Memory Storage Capacity | 2 MB |
| Model Name | Seeed Studio XIAO nRF52840 |
| Ram Memory Installed Size | 0.25 MB |
| CPU Speed | 0.06 GHz |
| Product information | |
| Operating System | Arduino IDE or MicroPython or CircuitPython |
| Number of Packs | 1 |
| Total USB Ports | 1 |
| Technical Details | |
| Manufacturer Part Number | 102010448-FA |
| Item details | |
| Model Number | 102010448-FA |
| Others | |
| Network Connectivity Technology | zigbee or Bluetooth 5.0 or NFC |
| Product Type | Barebones |
| Box Contents | / |
| Wireless Compability | Bluetooth |
| RAM Memory Installed | 0.25 MB |
| Processor Speed | 0.06 GHz |
| Processor Count | 1 |
| Processor Brand | ARM |
