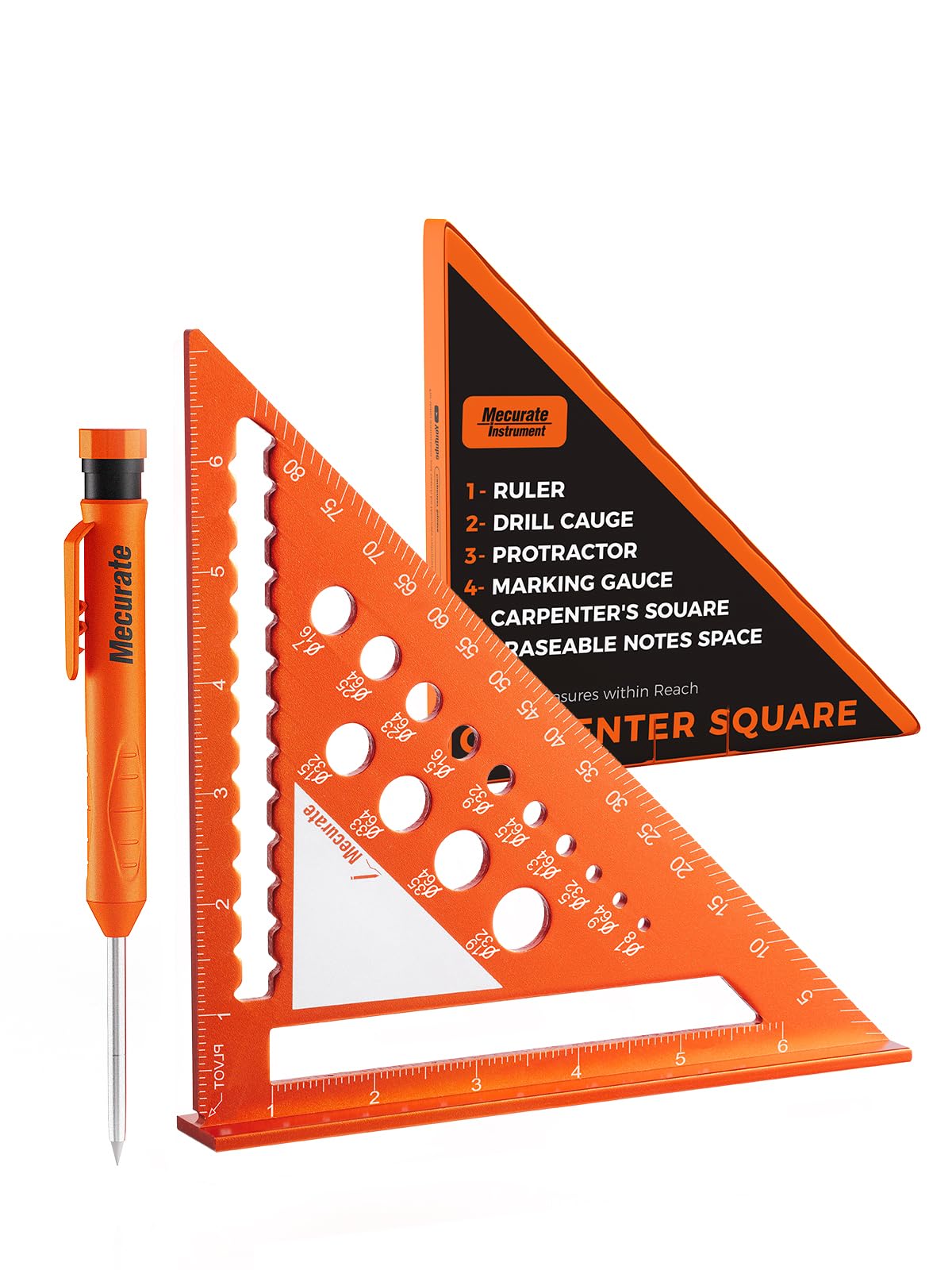

Mecurate 7-Inch Die-Cast Aluminum Triangle Rafter Square
12 sold in last 24 hours
- 【High quality】: Mecurate rafter square made of die-casting aluminum, which is light and convenient. Good oxidation resistance, not easy to break, each triangle ruler is thickened, corrosion-resistant and high hardness.
- 【Permanent scale】: With permanent laser engraved scales, Mecurate rafter square gives you the over standard accuracy you need. Frosted smooth surface, wear resistance, clear scale on the ruler surface, long service life.
- 【Multi-function】: Suitable for the measurement, Mecurate rafter square can be used as a protractor, woodworking compass, triangle square and frame square. The horizontal base is convenient for marking, smooth and practical.
- 【Convenient and comfortable design】: Mecurate rafter square is convenient to hang and store when not in use with humanized design. The edges and corners of each triangle are polished by special craftsmanship, so that it is smooth and does not hurt your hands.
- 【Warranty】: Mecurate products are providing 12 months warranty and life time support, be free to have new item for replacement.
Tags |
Estimated shipping
Select a product to estimate shipping.Rafter square is an essential tool for carpenter, whether you are working on rafter layout or just need a quick 45° or 90° angle measurement, this rafter square is committed to delivering the most refined, accurate, and easy-to-use layout square. Our instruction rafter squares deliver on our commitment and legacy of providing quality measurement solutions while our other rafter squares deliver a full line of solutions to meet any measuring needs.
Light Weight
Over standard Aluminum alloy material offers super light weight.Makes it convenient to carry with.
Identifiable Scale
The rafter square finishing features low glare and protective powder coated.
It has permanent deep markings and white graduations for max Readability any lighting.
Precise and Durable
CNC-machined edges enhance the precision and durability, withstand the rigors of daily use.
APPLICATION
Parallel to the degrees scale a further groove is milled with two scales for mitre (compound) cuts.
The upper one is for hip rafters (labelled HIP-VAL on the square) and the lower one is for common rafters (labelled COMMON on the square).
Place the lip side against the board and pressed against it at the pivot point (labelled PIVOT on the square).The other end is rotated away from the edge of the board until the edge and the desired angle are congruent. Now the saw cut can be marked. Note that you will always cut along the complementary angle.
If the angle at the edge is 30° then the angle you will mark will be 60°.
Set the pivot at the edge of the board and then rotate the square around that point until the edge of the board aligns with the correct mark on the "Common" scale - marked in red in the picture.
Then draw a line along the ruled side of the square.
The diamond cut out used to square a line that is drawn across the board to allow you to then make a 90-degree line perfectly from your line to the edge of the board.
If you need to find the level of a surface but, for some reason, you do not have a bubble level, you can improvise with the rafter square and a plumb-bob.
Product details
| Main Specification | |
|---|---|
| Manufacturer | Mecurate |
| Unit Count | 1 Count |
| Brand | Mecurate |
| UPC | 791334708044 |
| Number of Items | 1 |
| Graduation Range | 1/8 inches |
| Material | Aluminum |
| Colour | 7" Carpenter Square |
| Style | 7" Carpenter Square |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Part Number | MDSS |
| Material Type | Aluminum |
| Style | |
| Style Name | 7" Carpenter Square |
| Others | |
| Item Highlight | Carpenter square with permanent laser-engraved scales or thickened body and wide base for angle measuring and layout marking |
| Product Type | Carpentry Squares |
| Item Dimensions L x W | 7"L x 7"W |
