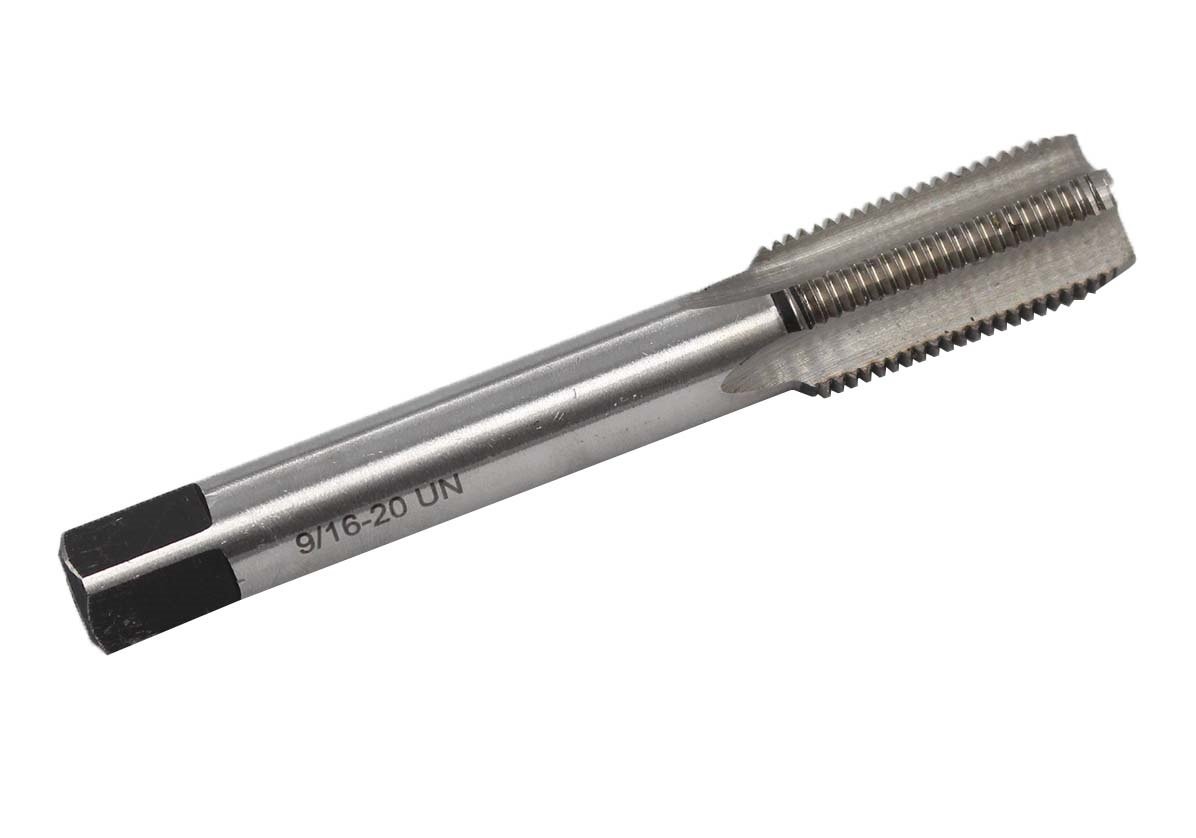

9/16-20 Right & Left Hand Thread Tap HSS 9/16'' - 20 TPI
12 sold in last 24 hours
- Thread Type: Right & Left Hand Thread
- Specification:Thread diameter (D): 9/16'', Threads per inch (TPI): 20, Pitch (P): 1.270mm, Flute type: Straight flute, Thread type: UN
- Fit/Style: This product is designed for the machining and processing of various metals, including steel, iron, aluminum, and copper. It is commonly employed in thread repair, as well as other general machining and maintenance operation. Please note: This tap set is NOT recommended for use on titanium, hardened steel, or exotic alloys which may require specialized cutting tools.
- 9/16"-20 Thread Tap: Ensure it is the correct type for your material (e.g., high-speed steel for metal).
- To install a 9/16"-20 tap thread, you must first drill the correct pilot hole, secure the material, and then carefully turn the tap, following specific rotation and lubrication procedures.
Tags |
Estimated shipping
Select a product to estimate shipping.Fit/Style: This product is designed for the machining and processing of various metals, including steel, iron, aluminum, and copper. It is commonly employed in thread repair, as well as other general machining and maintenance operation. Please note: This tap set is NOT recommended for use on titanium, hardened steel, or exotic alloys which may require specialized cutting tools.
Quantity: 2
Thread Type: Right & Left Hand Thread
Model: 9/16'' - 20 TPI
Material: HSS
Specification:
Thread diameter (D): 9/16''
Threads per inch (TPI): 20
Pitch (P): 1.270mm
Flute type: Straight flute
Thread type: UN
To install a 9/16"-20 tap thread, you must first drill the correct pilot hole, secure the material, and then carefully turn the tap, following specific rotation and lubrication procedures.
Required Tools and Materials
9/16"-20 Thread Tap: Ensure it is the correct type for your material (e.g., high-speed steel for metal).
Tap Wrench or Tap Handle: A tool with a square drive to turn the tap by hand. (Power tools are generally not recommended for hand taps).
Drill Bit: The correct size for the pilot hole (use a tap and drill chart for specific size, as it depends on thread standard, but commonly around 33/64" for similar threads).
Drill: To make the pilot hole. Cutting Oil/Coolant: Essential for cooling and lubrication to prevent tap loss and ensure clean threads. Vise or Clamps: To secure the workpiece firmly. Safety Gear: Safety glasses and gloves.
Step-by-Step Installation Instructions
1.Prepare the Hole:
Secure your material in a vise or with clamps.
Drill a pilot hole using the appropriate size drill bit. The diameter of the hole must match the tap specifications; refer to a tap and drill chart to find the exact requirement for a 9/16"-20 thread. Align the Tap:
2.Insert the tap into the tap wrench.
Place the tap into the pre-drilled hole, ensuring it is perfectly centered and aligned straight with the hole to avoid creating uneven threads or breaking the tool.
3.Cut the Threads:
Apply cutting oil or coolant to the tap and the hole before you begin.
Gently turn the tap clockwise for two complete rotations to start cutting the threads.
After the two clockwise turns, rotate the tap approximately a half-turn counter-clockwise. This reverse motion helps to break the chips and clear them from the flutes, preventing jamming. Repeat this process—two turns clockwise, half a turn counter-clockwise—until the desired thread depth is reached.
4.Finish the Job:
Do not force the tap; proceed slowly, especially in harder materials.
Once threading is complete, carefully unthread the tap counter-clockwise out of the hole.
Clean the new threads and the tap to remove all chips and apply anti-rust oil to the tap for maintenance after use.
| Main Specification | |
|---|---|
| Manufacturer | MOTOKU |
| Brand | MOTOKU |
| Item Package Quantity | 1 |
| Material | HSS |
| Item Weight | 0.01 Ounces |
| Product information | |
| Package Dimensions | 4.7 x 2.9 x 1.6 inches |
| Technical Details | |
| Part Number | 749029997297 |
| Measurement System | Imperial |
| Others | |
| Date First Available | 2019 or July 26 |
| Product Type | Hand Threading Taps |
