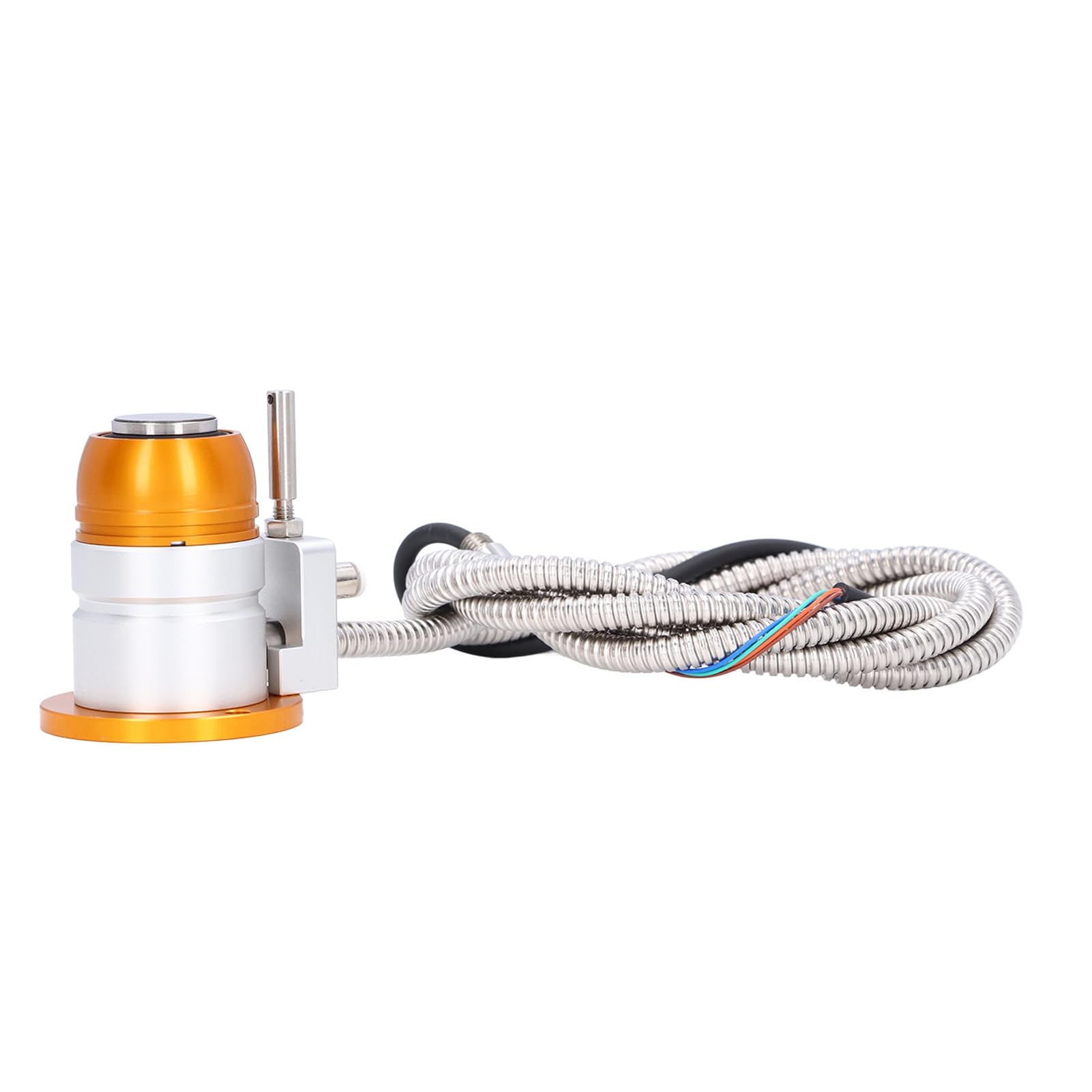

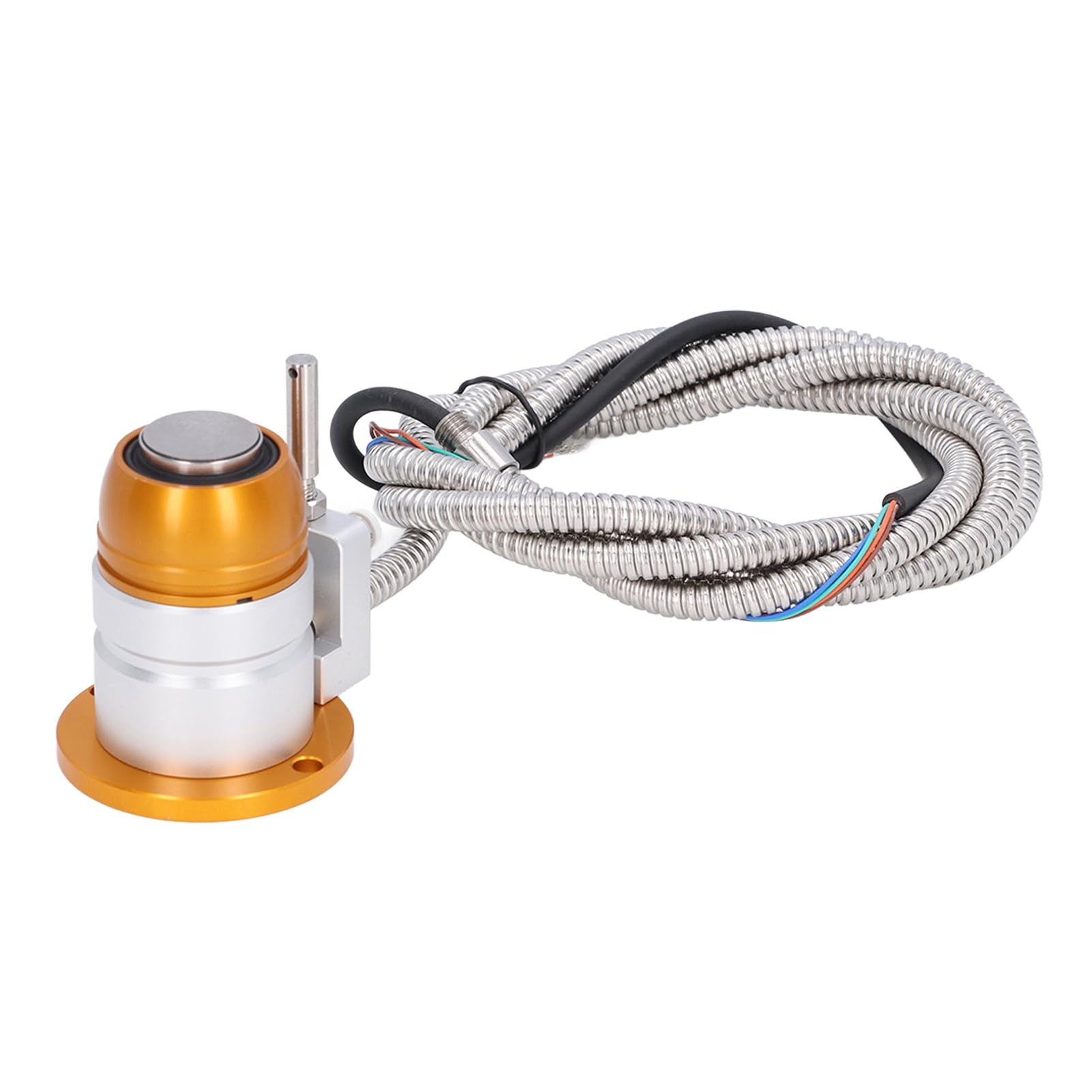

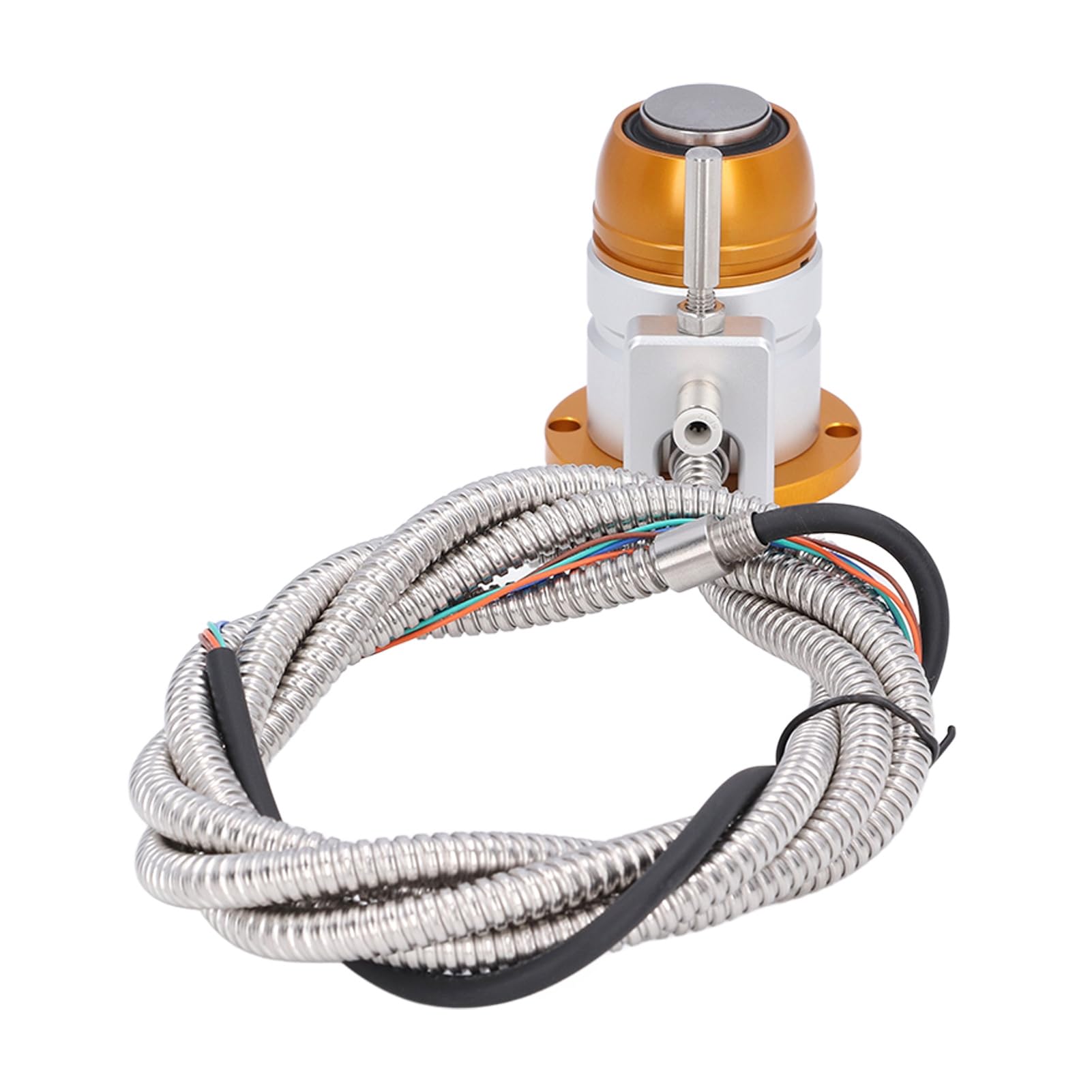

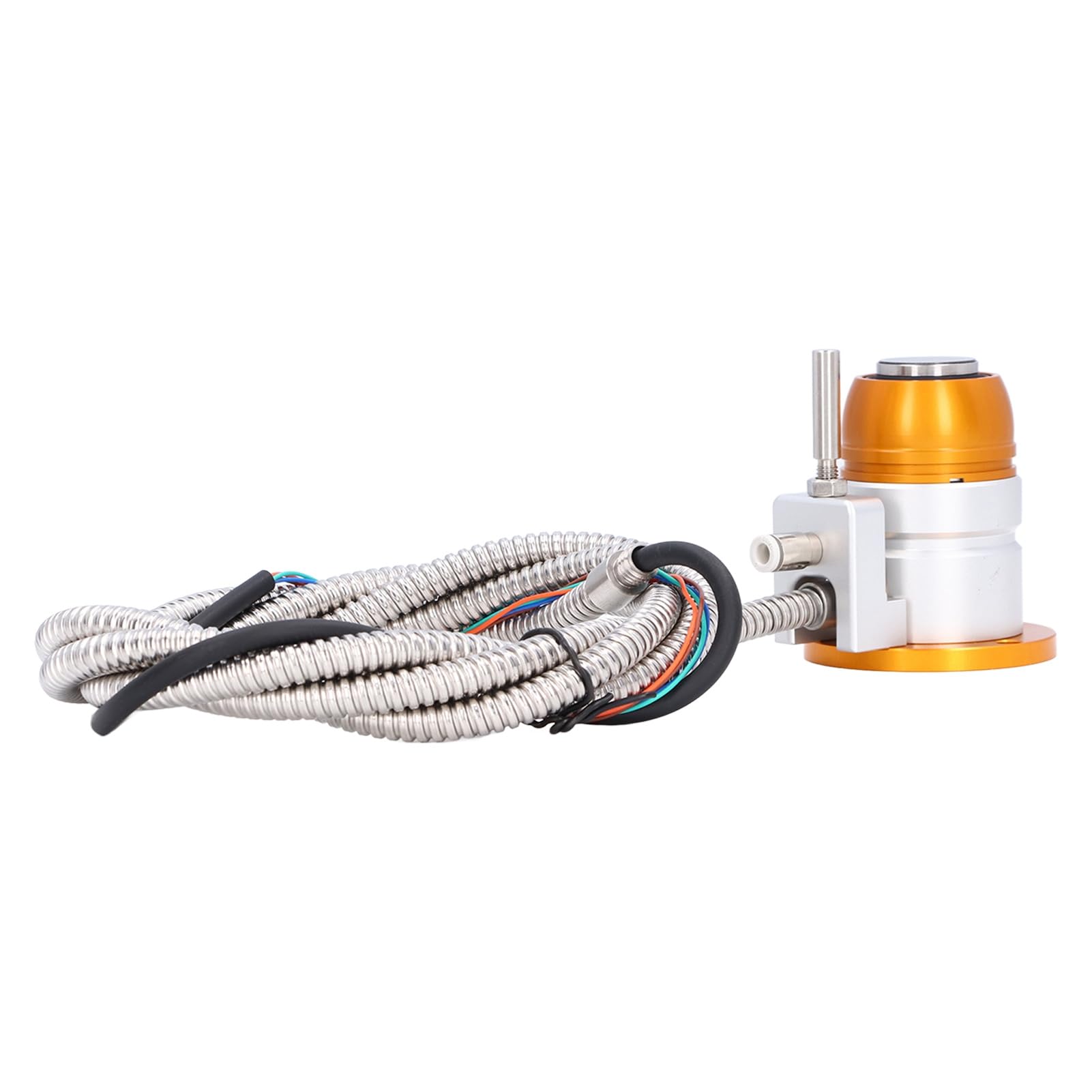

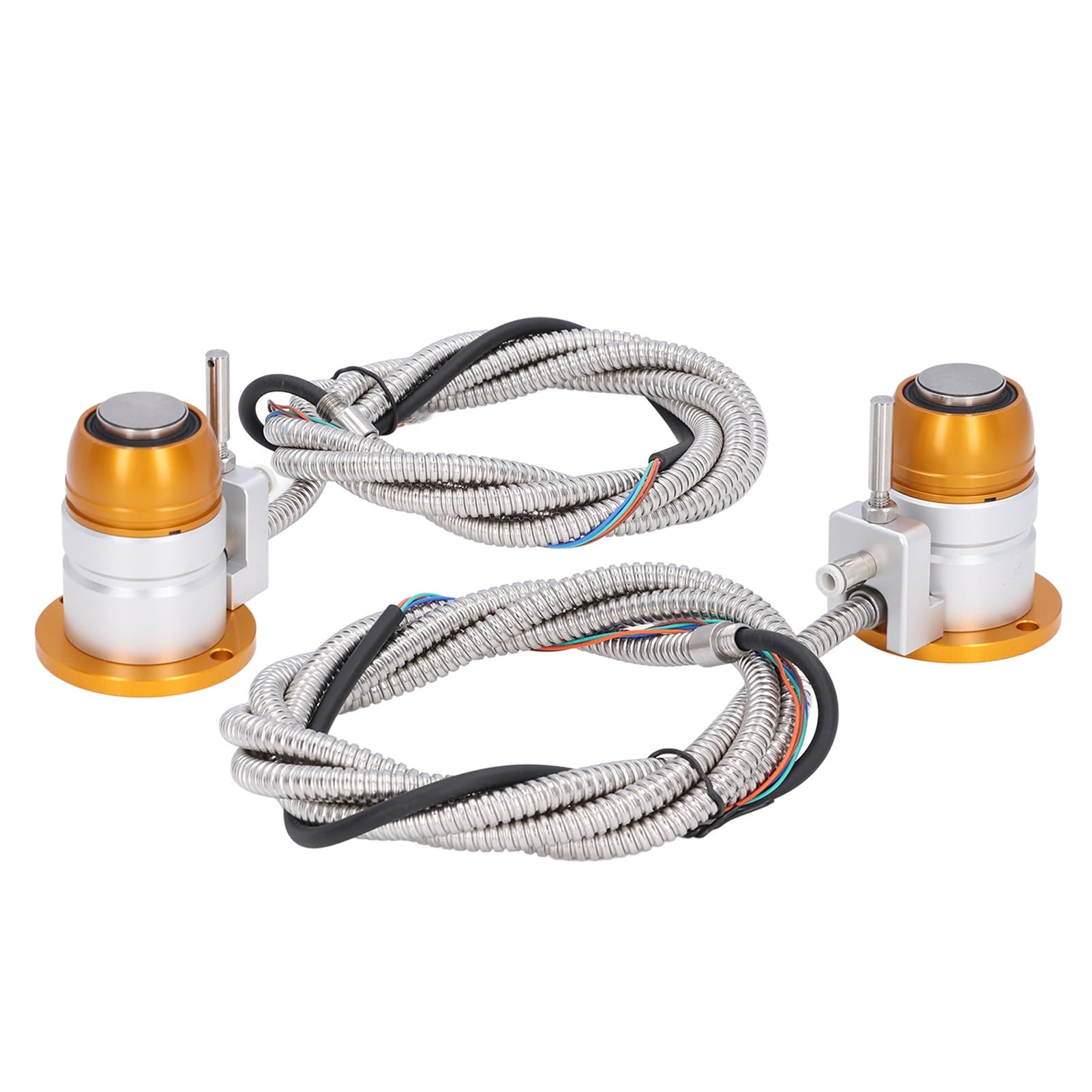

BTER CNC Automatic Tool Sensor Gauge, DC 24V Normally Closed CNC Z Axis Tool Setter, High Accuracy Aluminum Alloy Z Axis Probe Tool Touch Sensor Setting Gauge for CNC Router Engraving Machine
11 sold in last 24 hours
- 【MAIN FUNCTIONS】This CNC router tool is a special tool setting instrument for the engraving machine and CNC equipments. The output of it is received by the numerical control system and then the tool length setting, tool wear detection and tool breakage are detected by the program control.
- 【HIGH PERFORMANCE】This automatic tool setting instrument is designed with 5mm / 0.2in stroke, 0.001mm repeat positioning accuracy, 1.5N force and DC24V 20mA rating, with high accuracy and sensitivity, efficient and .
- 【PREMIUM QUALITY】This Z axis touch tool setter is made of cemented carbide, with fine processing, hard and wear resistant. It features with dustproof and waterproof structure, has strong durability in the existence of coolant and iron filings.

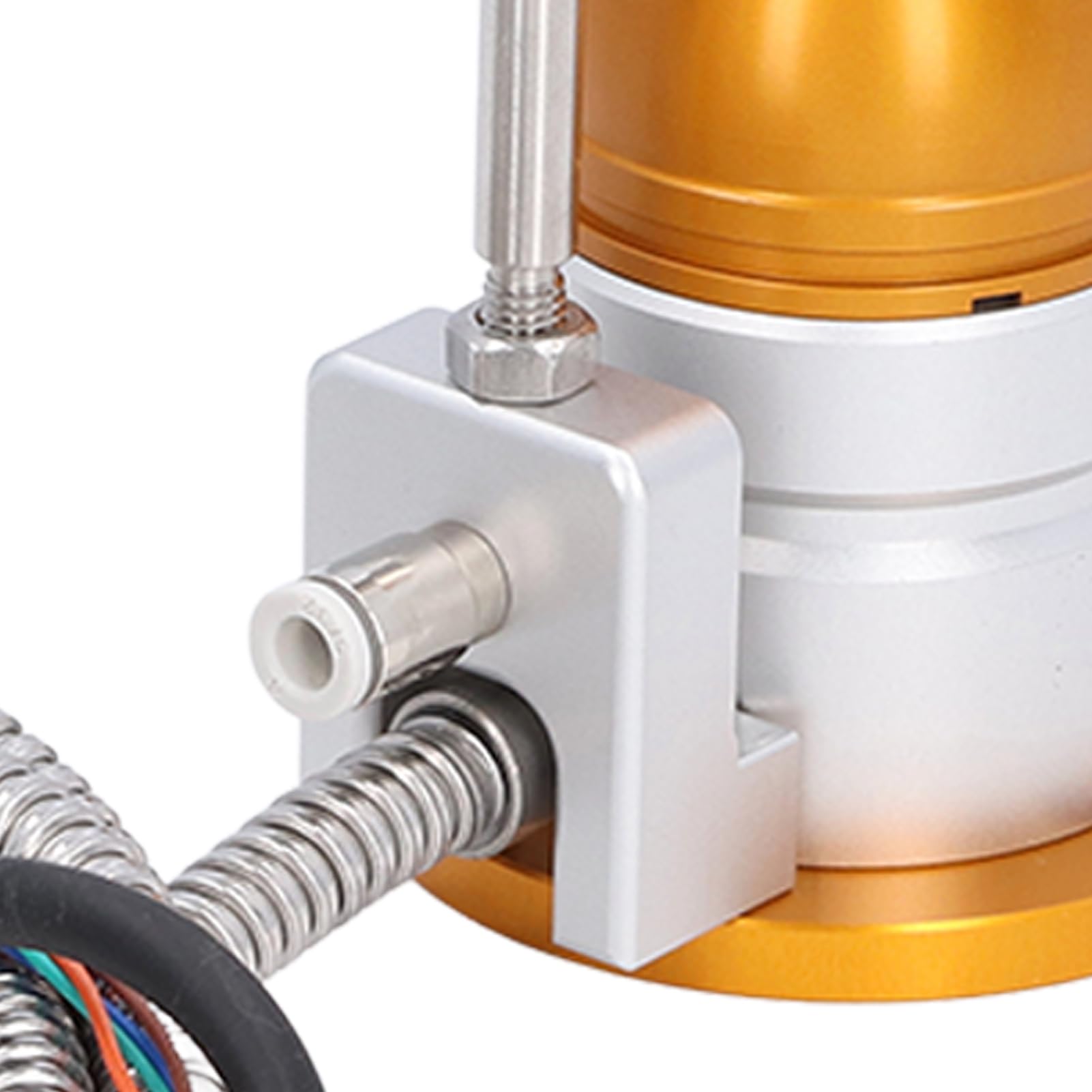

- 【WIDE APPLICATIONS】This Z axis tool touch sensor's bottom with magnet design, can be directly connected to the machine, firmly attached to the body. It is normally closed design, and equipped with cable, can be used with most CNC equipments.
- 【 QUALITY ASSURANCE】We are very confident in the quality of this automatic tool setting gauge, and provide or refund for it. Please feel to reach us if you have any questions about your purchase. We will solve your problem within 24 hours.
Tags |
Estimated shipping

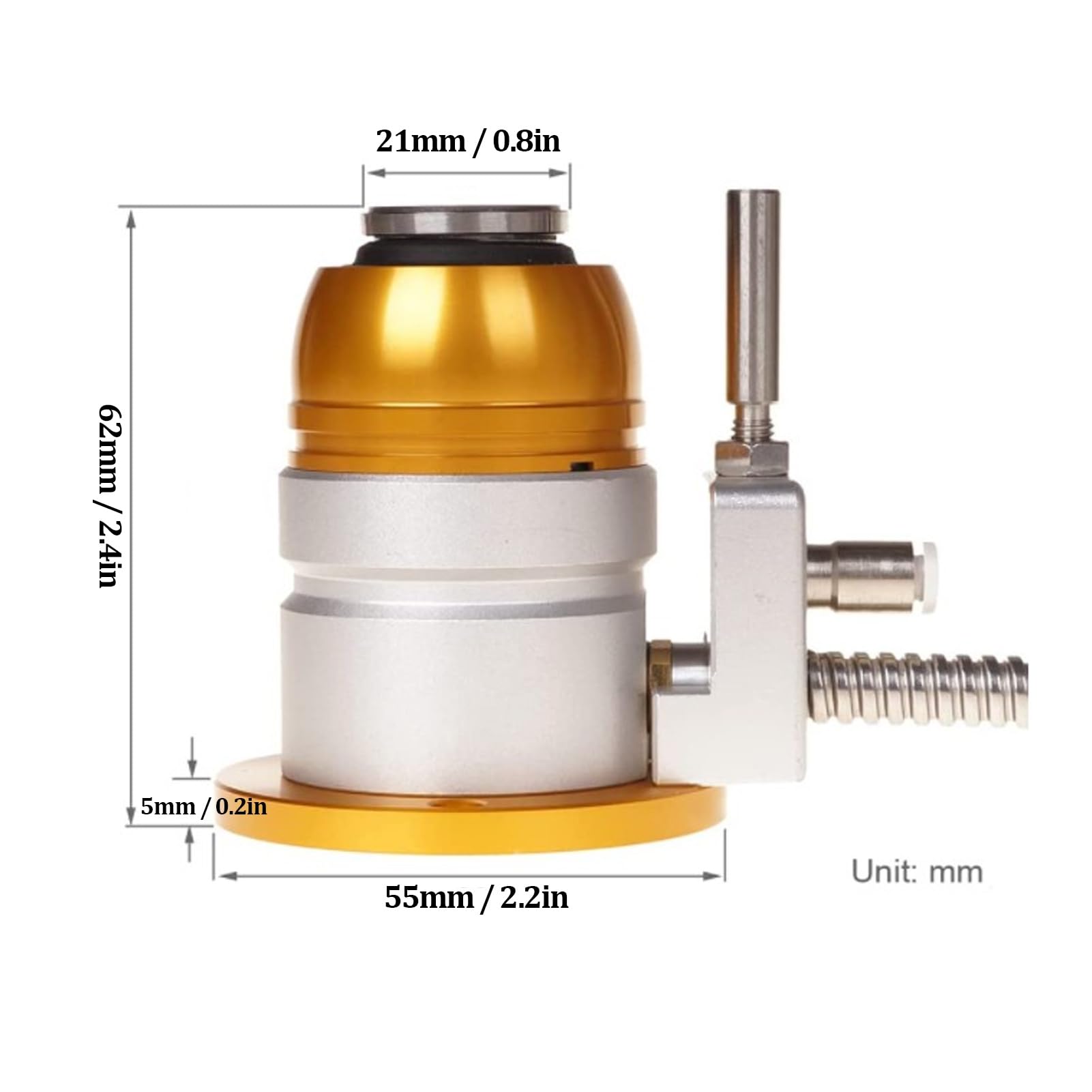

Select a product to estimate shipping.Feature: 1 STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body 2 CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and wear resistant 3 GOOD SEALING: With dustproof and waterproof structure, has strong durability in the existence of coolant and iron filings 4 HIGH EFFICIENCY: Repeated positioning accuracy of 0001mm, with high accuracy and sensitivity, efficient and durable 5 FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments Specification: Item Type: Touch Tool Setter Product Material: Aluminum Alloy Tool Head Material: Carbide Alloy Product Model: MY20-20-2 Voltage: DC 24V Current: 20MA (Maximum) Output Mode: NC (Normally Closed) Stroke: Approx 5mm / 02in Repeat Positioning Accuracy: 0001mm Life: 3 million times Contact Force: 15N Tool Head Diameter: Approx 20mm / 08in Package List: 1 x Tool Setter Note: 1 Please control the tool setting speed at 50‐200mm/min 2 Ambient temperature range is 0‐80°C 3 Please control the voltage at DC24V and the current below 20MA
| Main Specification | |
|---|---|
| Manufacturer | BTER |
| Unit Count | 1 Count |
| Current Rating | 20 milliamps |
| Brand | BTER |
| Number of Items | 1 |
| Output Type | Digital |
| Sensing Distance | 5 millimeters |
| Upper Temperature Rating | 80 °C |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Part Number | BTERggs1a6xdwt5587 |
| Model | MY20-20-2 |
| Measurement Accuracy | 0.001 mm |
| Others | |
| Product Type | Digital Calipers |
| Maximum Supply Voltage | 24 volts_of_direct_current |
