Aspa Solar DC MCB 500V 2 Pole 40A SIBASS Miniature Circuit Breaker
7 sold in last 24 hours
- Type: Miniature Circuit Breaker (MCB) Pole Configuration: 2P (Two Poles) Voltage Rating: 500V DC Current Rating: 40A Frequency: 50/60Hz Breaking Capacity: 6kA Operating Temperature Range: -25°C to +70°C Mounting Type: DIN Rail Mount
- With a voltage rating of 500V DC, the MCB is suitable for a wide range of DC applications, including solar power systems, battery banks, and other DC-powered installations.
- Current Rating of 40A: The circuit breaker is designed to handle a maximum current of 40 amperes, making it suitable for medium to high-current DC circuits commonly found in industrial and commercial setups.
- The MCB supports both 50Hz and 60Hz frequencies, offering flexibility for various applications and regions
- 6kA Breaking Capacity: The circuit breaker is capable of interrupting short-circuit currents up to 6,000 amperes, ensuring effective protection against short circuits and faults in the DC circuit. DIN Rail Mounting: The MCB is designed for easy and secure installation on DIN rails, commonly used in electrical distribution panels and control cabinets
- CE AND IEC60898-1 CERTIFIED
Estimated shipping
Select a product to estimate shipping.Mounting Type DIN Rail Mount
FIXATION TO DIN RAIL
DIN rail mounting capability simplifies installation, making it a preferred choice for professionals in the electrical and energy sectors.
Aspa Solar DC MCB 500V 2 Pole 40A
SIBASS Miniature Circuit Breaker
Type: Miniature Circuit Breaker (MCB) Pole Configuration: 2P (Two Poles) Voltage Rating: 500V DC Current Rating: 40A Frequency: 50/60Hz Breaking Capacity: 6kA Operating Temperature Range: -25°C to +70°C Mounting Type: DIN Rail Mount
Current Rating of 40A
The circuit breaker is designed to handle a maximum current of 40 amperes, making it suitable for medium to high-current DC circuits commonly found in industrial and commercial setups.
6kA Breaking Capacity
The circuit breaker is capable of interrupting short-circuit currents up to 6,000 amperes, ensuring effective protection against short circuits and faults in the DC circuit. DIN Rail Mounting: The MCB is designed for easy and secure installation on DIN rails, commonly used in electrical distribution panels and control cabinets

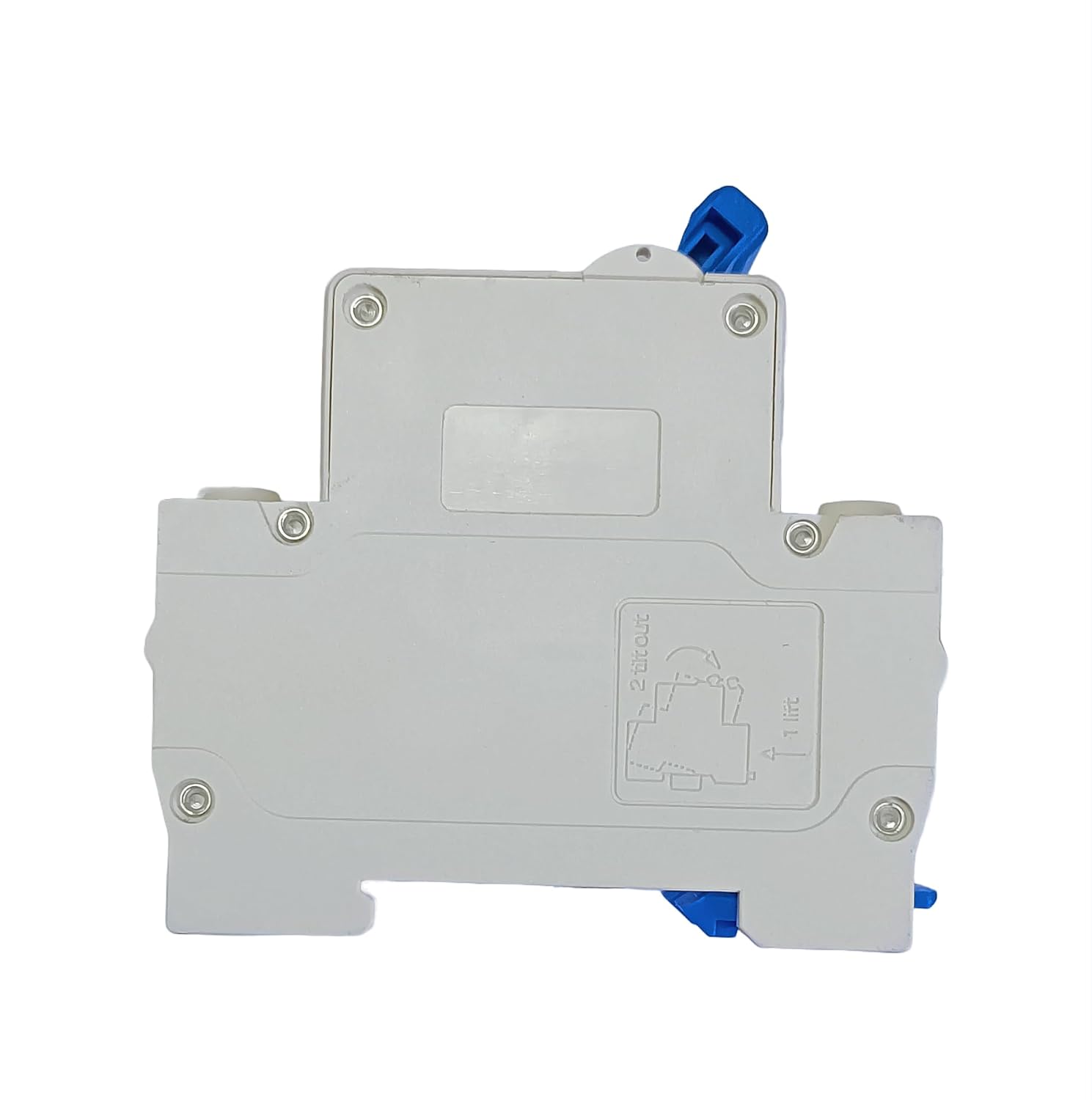

SIDE VIEW
dc mcb 40a 500v sibass
The SIBASS DC MCB 2P 500V 40A is a high-quality Miniature Circuit Breaker designed for direct current (DC) applications. This circuit breaker is built to provide reliable overcurrent protection in various electrical systems, ensuring the safety and efficient operation of DC circuits. The SIBASS DC MCB 2P 500V 40A Miniature Circuit Breaker is a robust and reliable solution for providing overcurrent protection in DC circuits. With its dual-pole configuration, high voltage and current ratings, and wide operating temperature range, it is well-suited for a variety of applications in different industries. Its DIN rail mounting capability simplifies installation, making it a preferred choice for professionals in the electrical and energy sectors.
Product details
| Main Specification | |
|---|---|
| Manufacturer | SIBASS, [email protected] |
| Unit Count | 1.00 Count |
| Current Rating | 40 Amps |
| Brand | ASPA |
| Number of Items | 1 |
| Circuit Breaker Type | Standard |
| Included Components | dc mcb 40a 500v sibass 1 qty |
| Product Dimensions | 70D x 30W x 70H Millimeters |
| Voltage | 500 Volts |
| Mounting Type | Din Rail Mount |
| Technical Details | |
| Part Number | SE-PV |
| Country of Origin | India |
| Number Of Poles | 2 |
| Item details | |
| Item Type Name | MINIATURE CIRCUIT BREAKER |
| Measurements | |
| Item Dimensions D x W x H | 70D x 30W x 70H Millimeters |
| Others | |
| Product Type | MINIATURE CIRCUIT BREAKER |
| Packer Contact Information | ADITYA SOLAR POWER |
| Manufacturer Contact Information | [email protected] |
