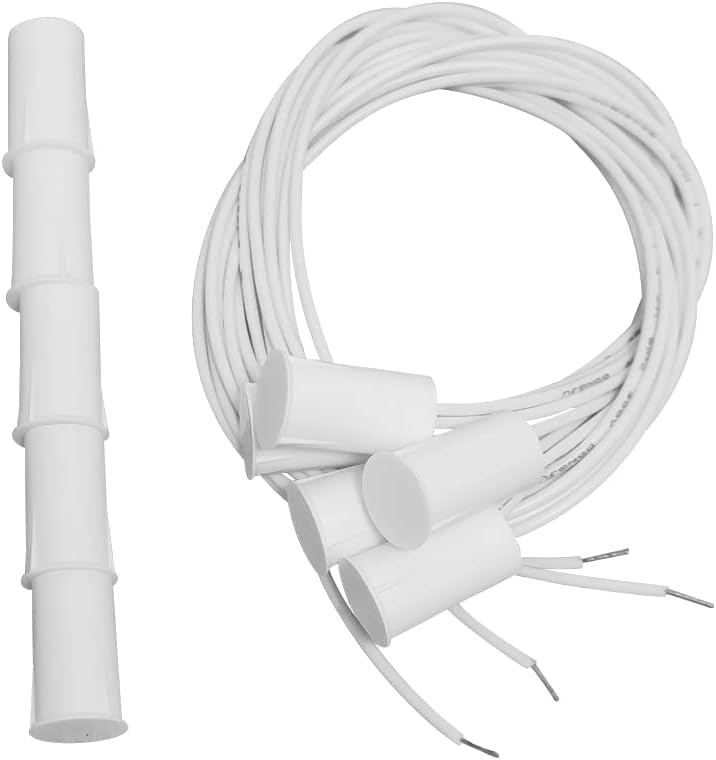

5 Pack Magnetic Contacts Switch Window Door Sensor for Alarm System NC 3/8"
6 sold in last 24 hours
- Small size, easy to install and concealment

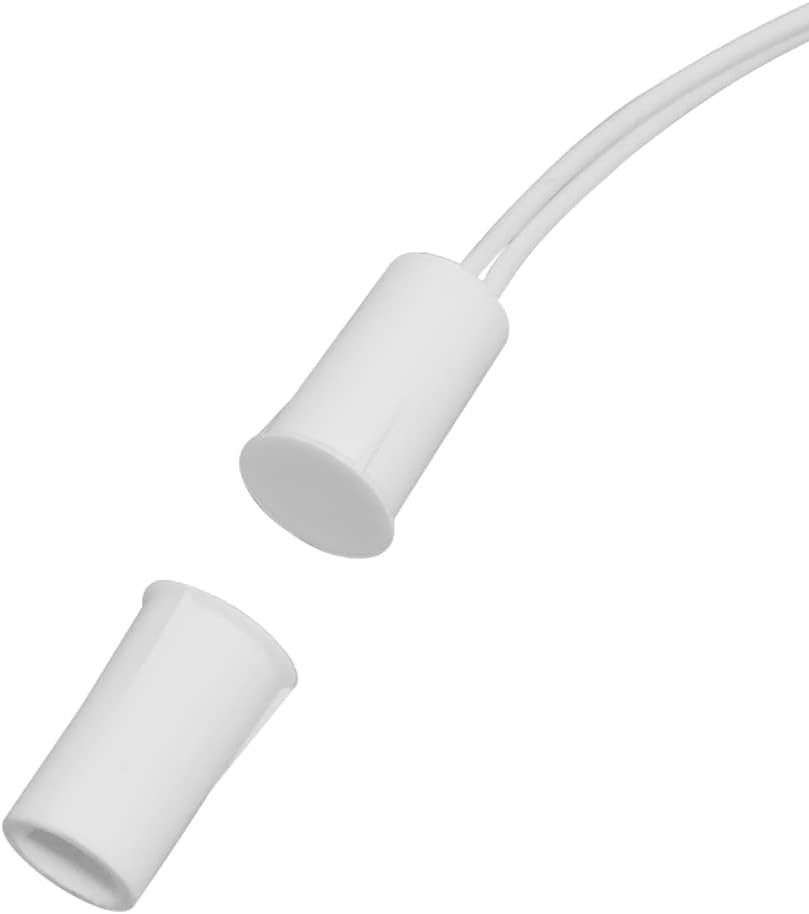

- Flush mounted cylindrical magnetic contacts

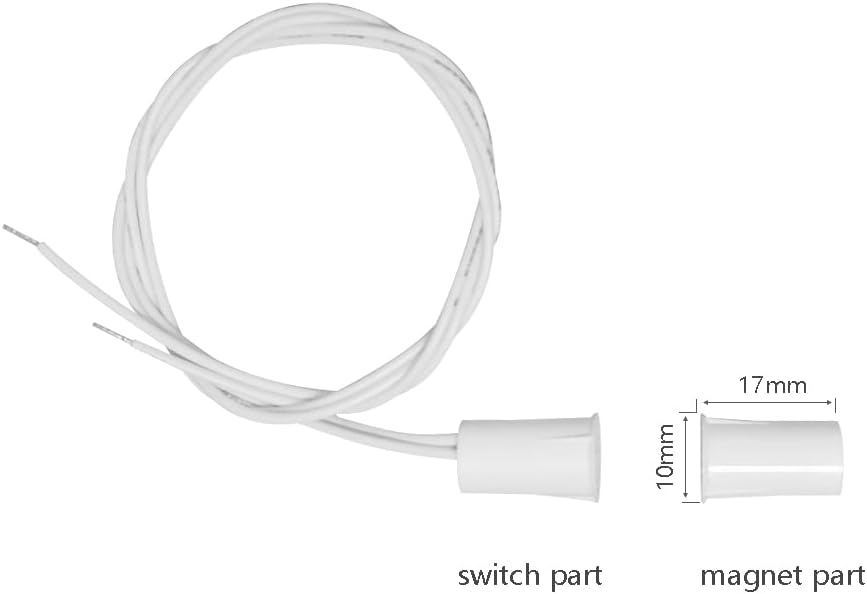

- φ10mm 3/8" diameter press to fit
- Ideal for window or wooden door
- Standard 300mm #24 AWG leads
Estimated shipping

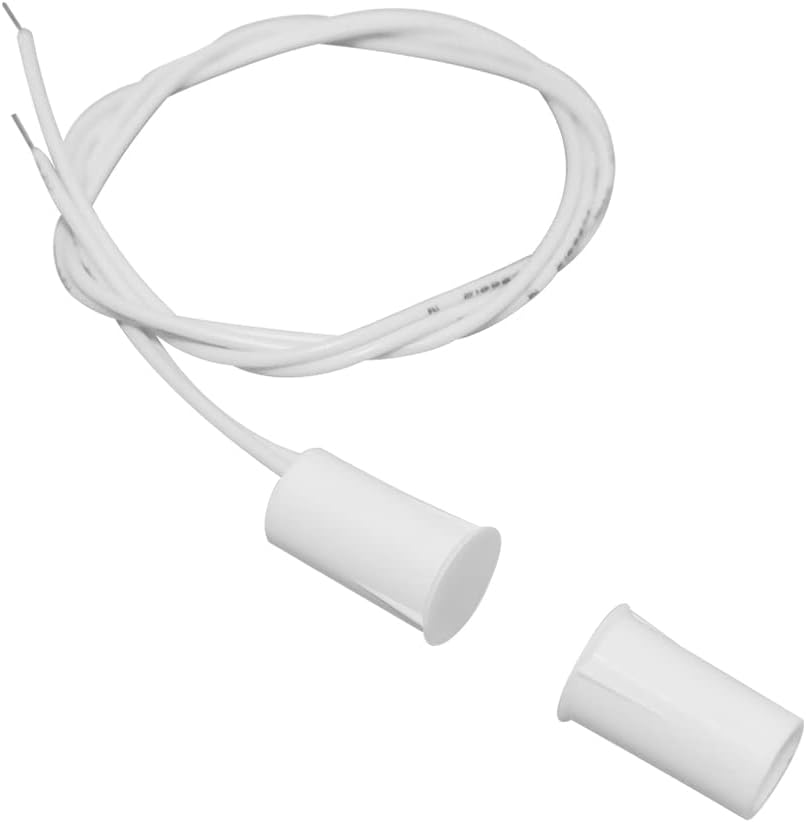

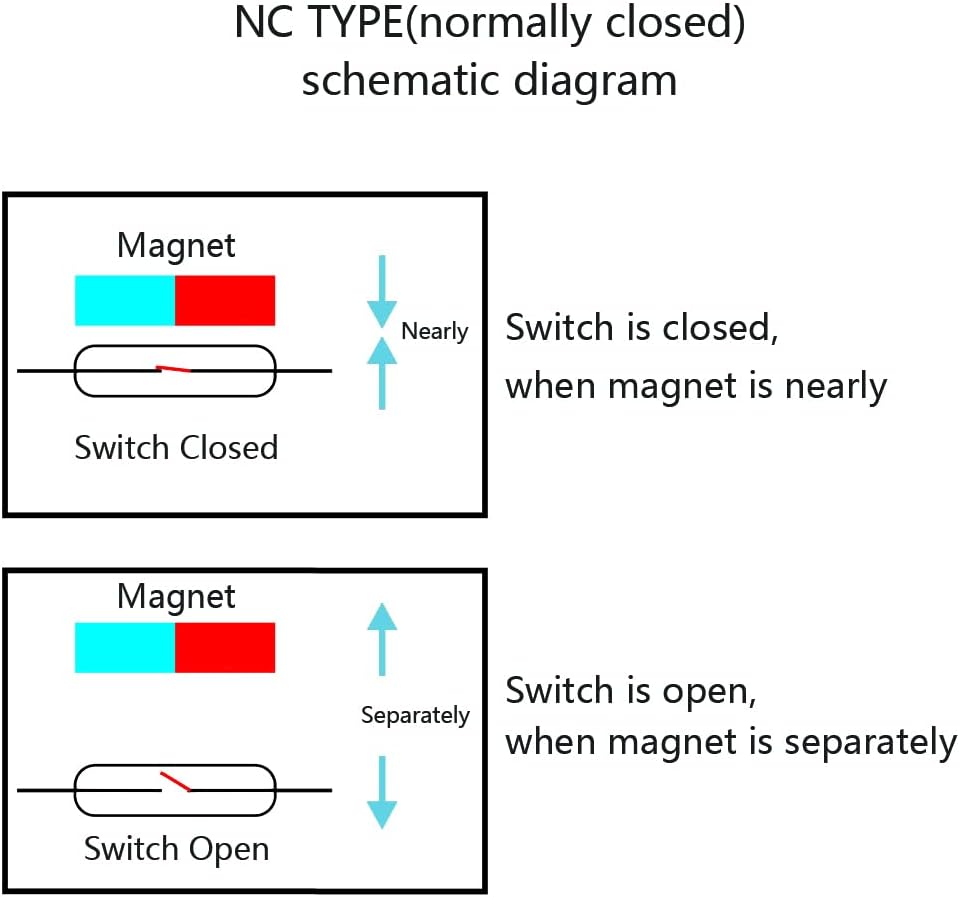

Select a product to estimate shipping.Magnetic contacts is widely used for alarm system(panel) to detect state of door. It consist of a reed switch part and a magnet part . When door closed, reed switch is effected by magnet and turn ON; when door open, reed switch is effected by magnet and turn OFF, trigger alarm.
Contact type: NC
Material: ABS plastic
Color: white
Pack: 5pairs/bag
Technical Details
| Voltage | 12 Volts (DC) |
|---|---|
| Control Method | Touch |
| Mounting Type | Window Mount |
| Sensor Technology | Contact Sensor |
| Manufacturer | WESUA |
| Part Number | MCS-33B |
| Item Weight | 1.76 ounces |
| Product Dimensions | 7.87 x 5.91 x 0.79 inches |
| Item model number | MCS-33B |
| Included Components | Switch |
| Batteries Required? | No |
| Description Pile | Alkaline |
| Main Specification | |
|---|---|
| Brand | Wesua |
| Power Source | Battery Powered |
| Compatible Devices | Alarm Panels |
| Color | White |
| Technical Details | |
| Battery Description | Alkaline |
| Others | |
| Product Type | Alarm |
