Treedix 2PCS Multifunctional Wallet PCB Ruler SMD Ruler 3inch Measuring Tool Resistor Capacitor Chip IC SMD Diode Transistor Package for Engineers Reference EDC Card
4 sold in last 24 hours

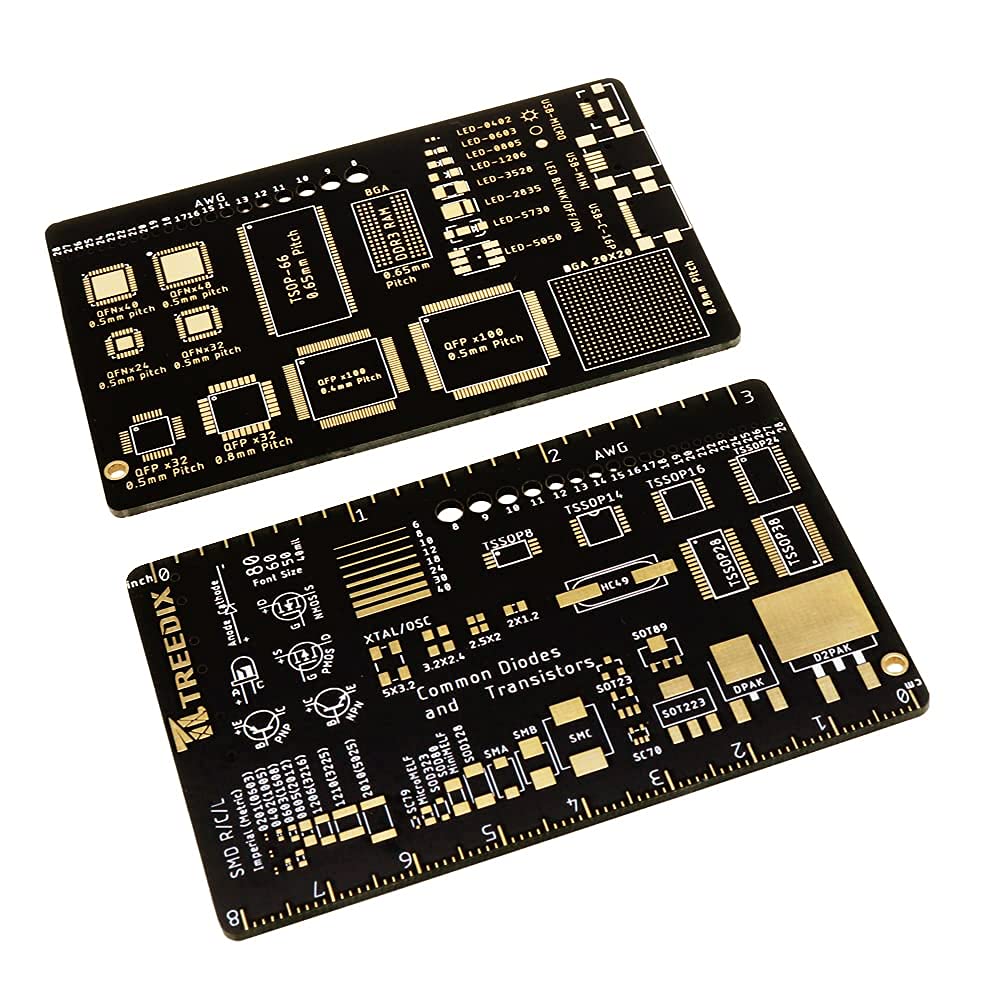

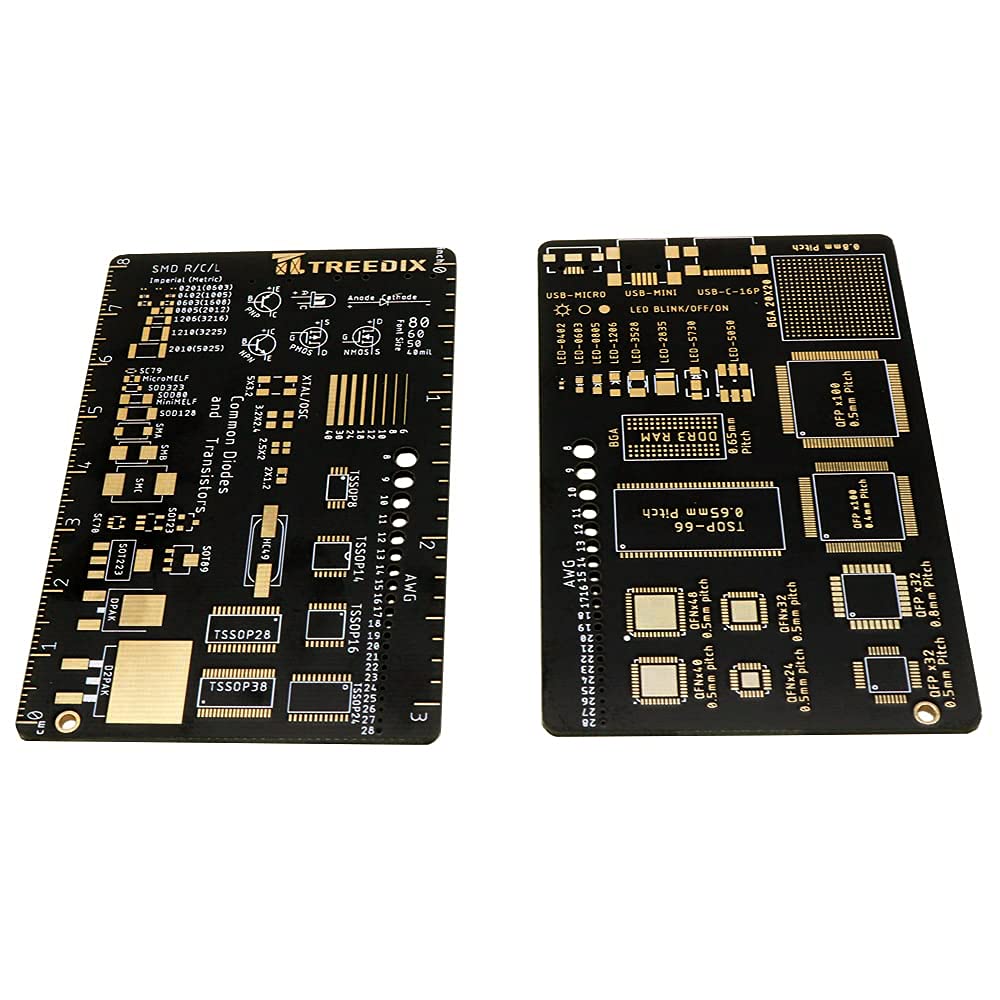

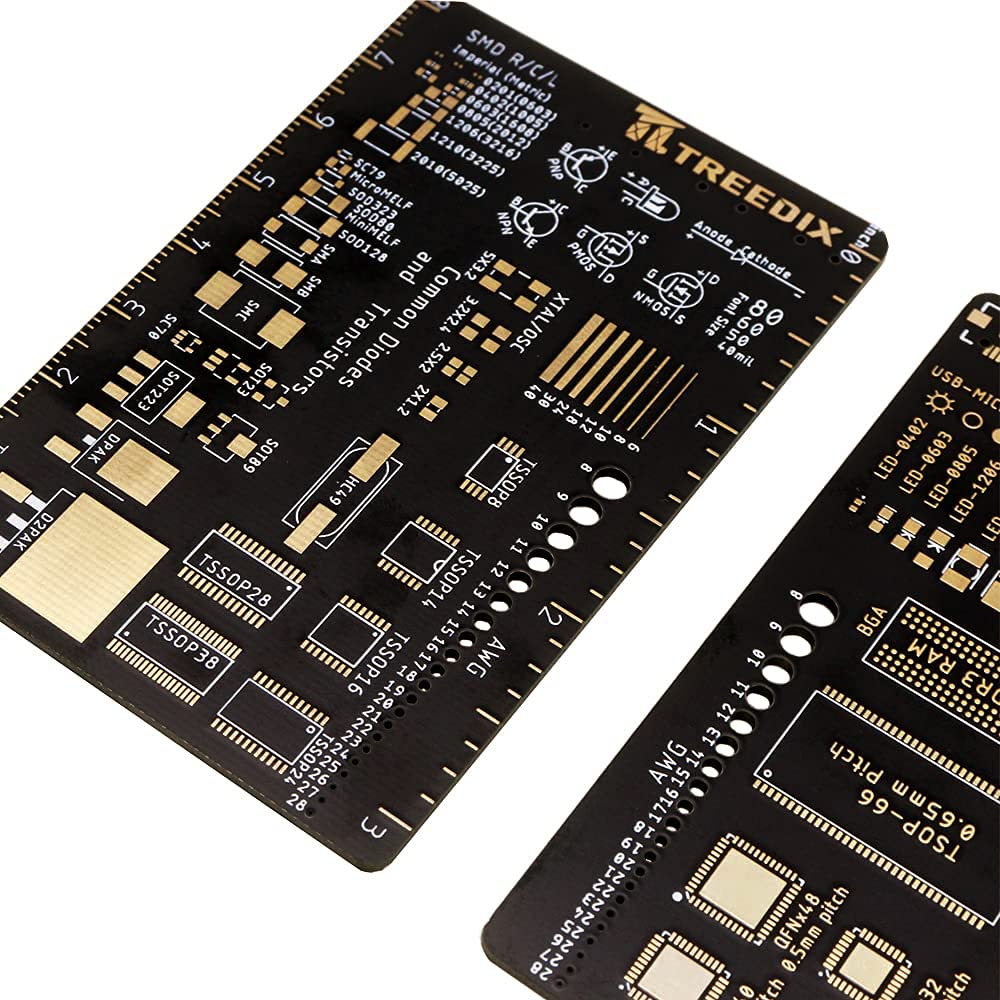

- 【Multifunctional Ruler】 It's integrates relevant information of PCB design, such as angle gauges, devices, IC pin pitch meter, resistor-capacitor chip packaging, commonly used MOS, diode, and triode packaging, commonly used diameter reference drilling, AWG wire gauge reference etc
- 【Simple Identification】It is very useful for identifying SMT/SMD component size, AWG wire gauge width, etc. The ruler provides you with a straight line centimeter mark and inch mark
- 【Preminum Quality】gold-plated on both sides, practical and lightweight, and can be placed in a card holder wallet and carried with you. It is a standard multifunctional ruler for electronic engineers
- 【Professional Precision】The printed circuit board ruler size is 3 inches, to bring you accurate and professional precision, this is also a measurement tool that electronics enthusiasts need to use in the design process
- 【After-sales Service】Our pcb rulers have undergone strict quality inspection. If you have any questions, please feel free to contact me. I believe our sweet service will satisfy you
Estimated shipping
Select a product to estimate shipping.
Specification:
Material: Double-sided Immersion Gold
Features: AWG wire gauge
IC package size:5.45*8.79cm(2.15*3.47in)
Common packages: QFN40 QFN80 QFN24 QFN32 TQFP32 TQFP100 TSOP-66 TSSOP 8/14/16/2428/38 SOT89 SOT223SOT23 SC70
Commonly used resistor-capacitor chip packages: 0201, 0402, 0603, 0805, 1206, 1210, 2010
Commonly used MOS, diode, and triode packages: SOT
LED package: LED-0204, LED-0603, LED-0805, LED-1206, LED-3528, LED-2835, LED-5730
Package Includes:

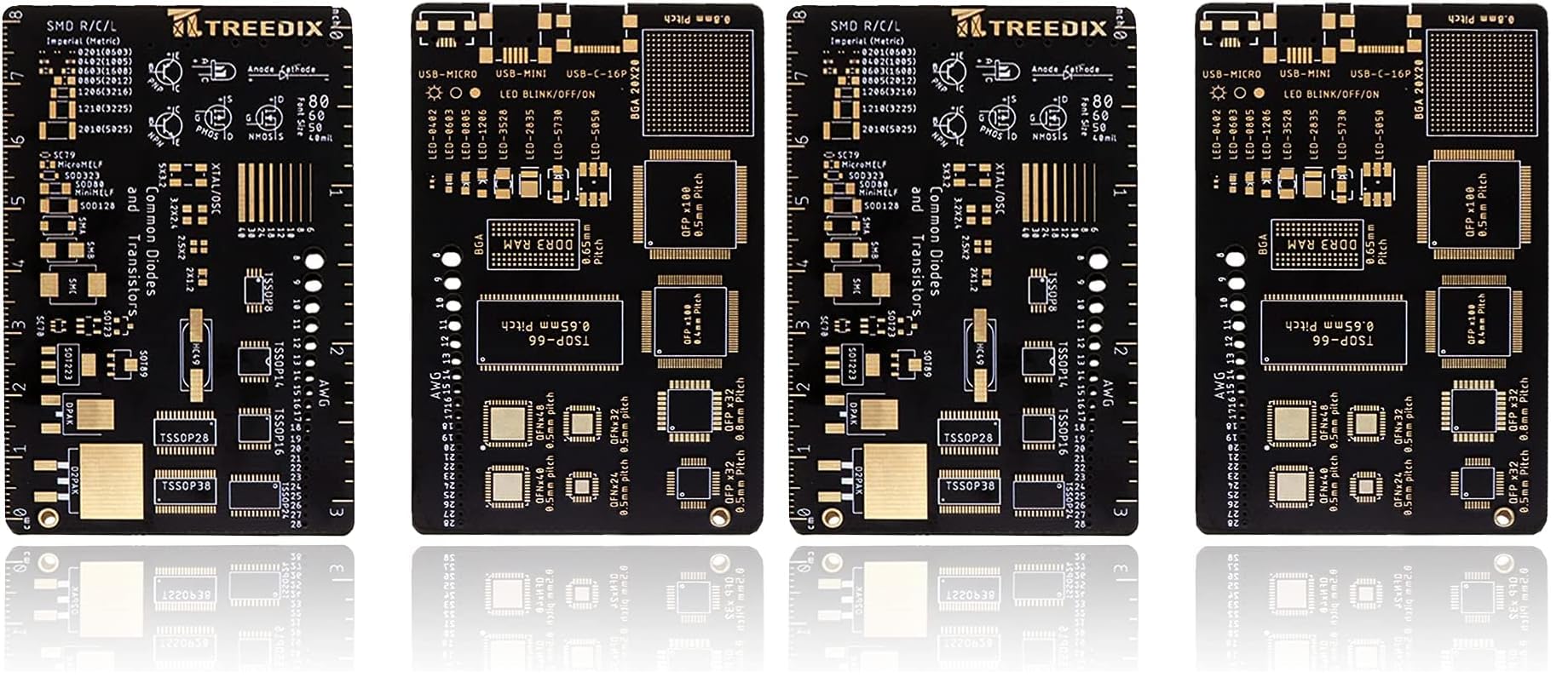

2*pcb rulers
| Main Specification | |
|---|---|
| Manufacturer | Treedix |
| Unit Count | 2 Count |
| Brand | Treedix |
| UPC | 764784798101 |
| Number of Items | 2 |
| Graduation Range | 3 inches |
| Material | Copper |
| Colour | Black |
| Style | Modern |
| Product information | |
| Number of Packs | 2 |
| Technical Details | |
| Part Number | TRX5-0222 |
| Model | TRX5-0222 |
| Material Type | Copper |
| Style | |
| Style Name | Modern |
| Others | |
| Product Type | Prototyping Boards & Accessories |
