NANPU 1/2" NPT Industrial Air Compressor Filter Dryer Regulator, 175 PSI
14 sold in last 24 hours
- DRY, OIL-FREE AIR THAT PROTECTS YOUR WORK — Strips water, oil and moisture from compressed air to help prevent paint fisheyes, contaminated plasma cuts, rusty air lines and water damage to pneumatic tools — for cleaner finishes and less rework.
- STAGE 1 – AIR FILTER + REGULATOR, HIGH-PRESSURE RATED — Operates across a wide 30–175 psi range; a 5-micron element drops out bulk liquid water, oil and rust/debris while the gauge regulator holds steady output for a consistent spray pattern and stable tools.
- STAGE 2 – 0.01-MICRON COALESCING FILTER — Captures 99.998% of the ultra-fine oil aerosols and sub-micron moisture that slip past Stage 1 — the contamination that causes paint blemishes and pitted plasma cuts; a pop-up indicator shows when to change the element.
- STAGE 3 – DESICCANT DRYER, NO DRAIN NEEDED — Color-indicating beads absorb the last of the water vapor for truly dry air with no liquid to drain; the beads turn blue→pink when spent, so you simply refill or regenerate them.

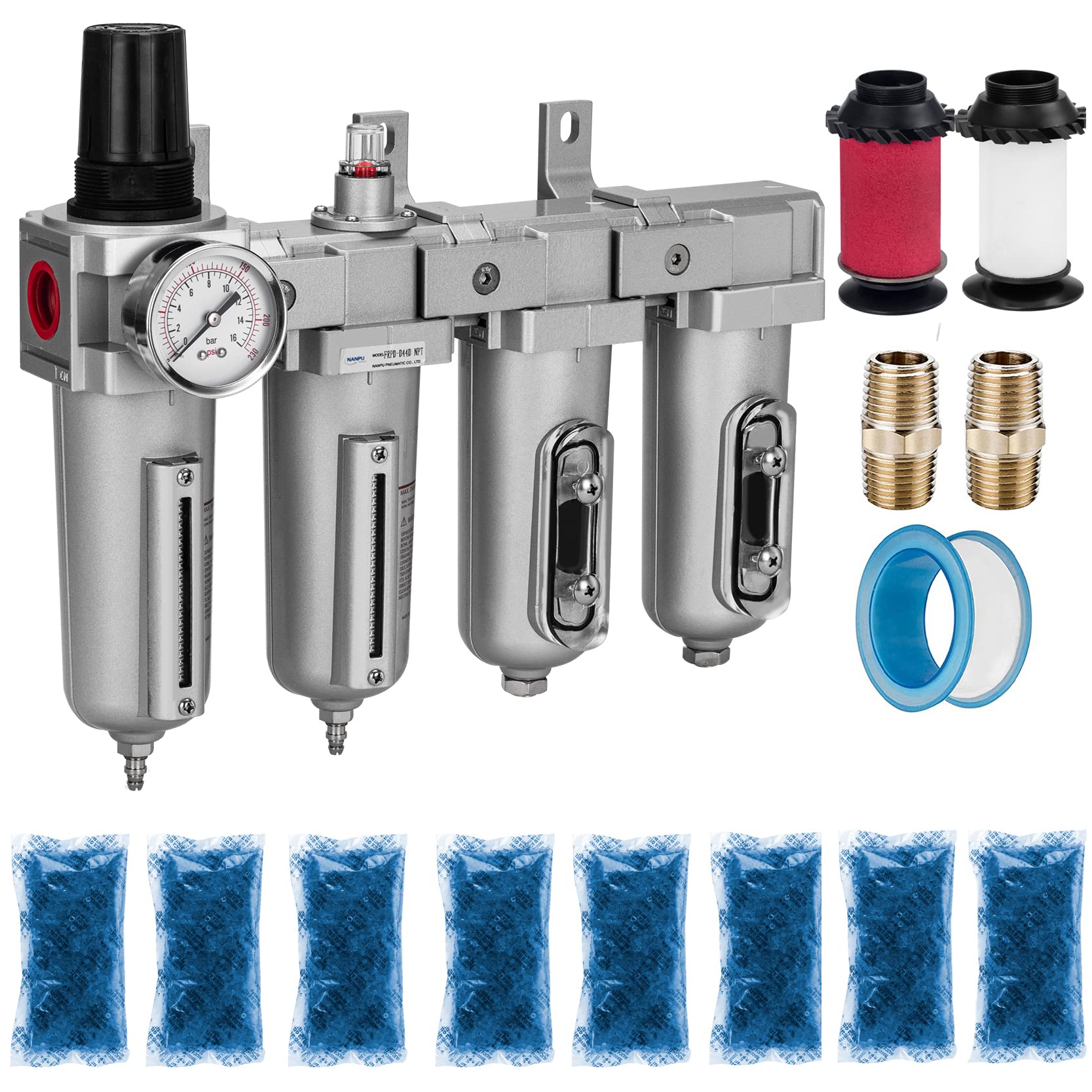

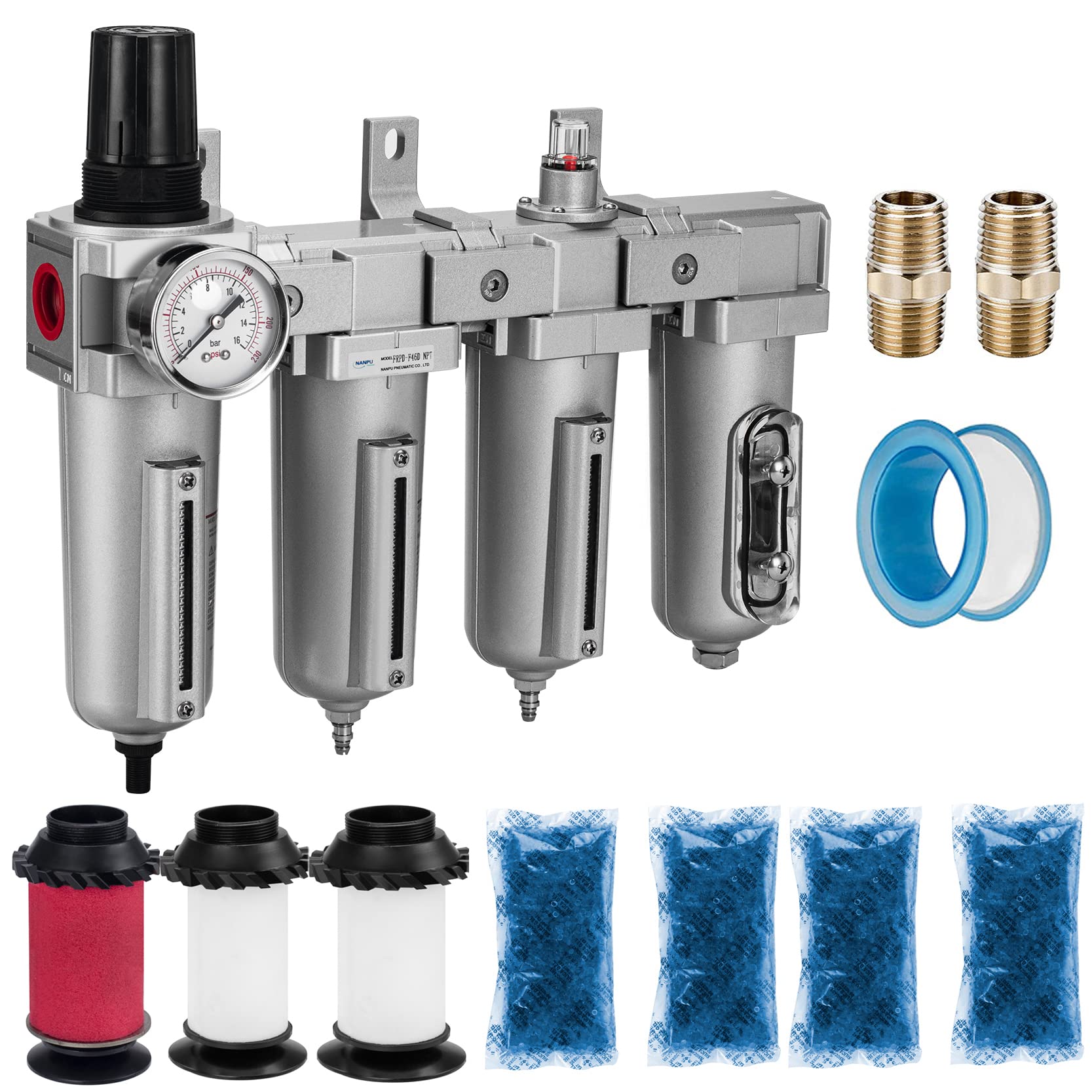

- INDUSTRIAL-GRADE, BUILT FOR THE SHOP — 1/2" NPT ports, 141 CFM (4000 L/min) flow, heavy metal bowls with sight glass and wall-mount bracket; ideal for HVLP spray guns, automotive painting, plasma cutters, sandblasters and air tools in busy garages and shops. Includes 2× 5μm + 2× 0.01μm elements, 4× desiccant bags (3.5oz / 100g), 2× 1/2" NPT fittings and thread seal tape.
Estimated shipping
Select a product to estimate shipping.NANPU Industrial Grade 3 Stage Air Drying System
The Filter Regulator/Coalescing Filter/Desiccant Dryer is a Three-part System.
The First Stage Filter Regulator is Designed to Remove Most Liquid and Solid Particles from the Air Supply.
The Second Stage Coalescing Filter is Used to Remove 99.9% of Vapor, Oil, Particles.
The Third Stage Desiccant Dryer Reduces Humidity in Compressed Air Line.
Filter Elements and Desiccant Beads
In addition to the 5 Micron Brass Element and 0.01 Micron Coalescing Filter Elements that have been Installed in the Product, We also Provide You with an Additional Spare Filter Element Each. We also provide you with 4 Bags of 3.5 oz Desiccant Beads.
Accessories
2 x 1/2" NPT Fittings
1 x Thread Seal Tape
Helps Connect to Your Air Supply Firmly.
Brand Package & Foam Box
The Original Packaging and Foam Box Gives the Product Better Protection, Preventing any Damage that may have occurred during Transit.
Air Drying System
Instructions:
Preparation
The assembly of all calibrations shall meet the maximum flow requirement.
Please clean the port and fitting before installation, it will effectively avoid bringing dust to the air path.
Pay attention to the direction of air flow and the arrow pointing on the product body if correct, minding port and thread size if match.
Pressure Adjustment
Pull up the knob of the pressure gauge, rotate:
If you do clockwise rotation, pressure will rise steadily. Pressure will down when you rotate counterclockwise.
Stop turning after reaching the required index and lock down the knob, forget this step you may face a leakage problem.
Dial Reading
Make sure that the pressure gauge is tightly installed on the main body, and pay attention to whether the reading rises and falls smoothly while adjusting pressure.
Auto & Manual Drain
Auto: If a certain condensate filling level is reached inside the filter housing the condensate drain valve opens automatically draining the condensate through the condensate drain hose into the collection container( not included in delivery) until just a small residual quantity remains.
Manual: When water exceeds the level, please drain off the water to keep optimal dehumidification. Press up the bottom of the brass drain body, then it will start to drain.
Service Indicator
The service indicator on the coalescing filter signals when the filter element needs to be replaced.
When the indicator pops up, the element must be replaced.
Filters&Desiccant Dryer
1:The first filter stage separates particles > 5μm as well as condensed water and oil.
2:The second filter fineness 0.01μm, separation degree 99.998% related to a particle size > 0.01μ.
3:The third stage desiccant dryer with desiccant beads completes the final air cleaning work.
Product details
| Main Specification | |
|---|---|
| Manufacturer | NANPU |
| Brand | Nanpu |
| Item Weight | 7.43 pounds |
| Product information | |
| Package Dimensions | 13.82 x 11.05 x 4.62 inches |
| Item model number | FRPD44-D |
| Others | |
| Date First Available | 2021 or June 28 |
| Product Type | Air-Compressor Accessories |
