Robocraze 12V Mini Electric Solenoid Lock | Cabinet & Drawer Lock
7 sold in last 24 hours
- Mini Electric Lock: The Robocraze solenoid lock provides electrically controlled locking for compatible cabinets, drawers, doors and enclosures.
- 12V DC Operation: Designed for 12V DC power, making it suitable for compatible electronic access-control and automation circuits.
- Compact Locking Design: The mini electromagnetic lock is suitable for applications where a compact electrically controlled locking mechanism is required.
- Home Automation: Ideal for smart cabinets, electronic lockers, DIY door locks and home automation projects using a suitable control circuit.
- DIY Science Projects: Suitable for Arduino projects, access control prototypes, robotics, electronics learning and automation experiments.
Estimated shipping
Select a product to estimate shipping.Solenoid Lock for Doors and Cabinet

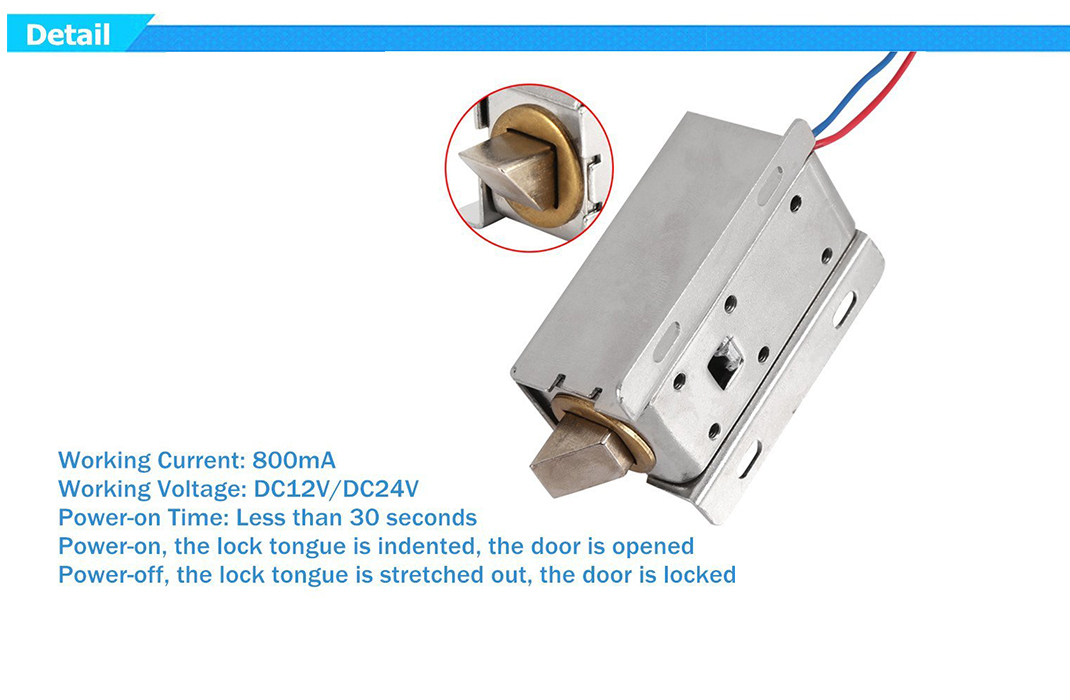

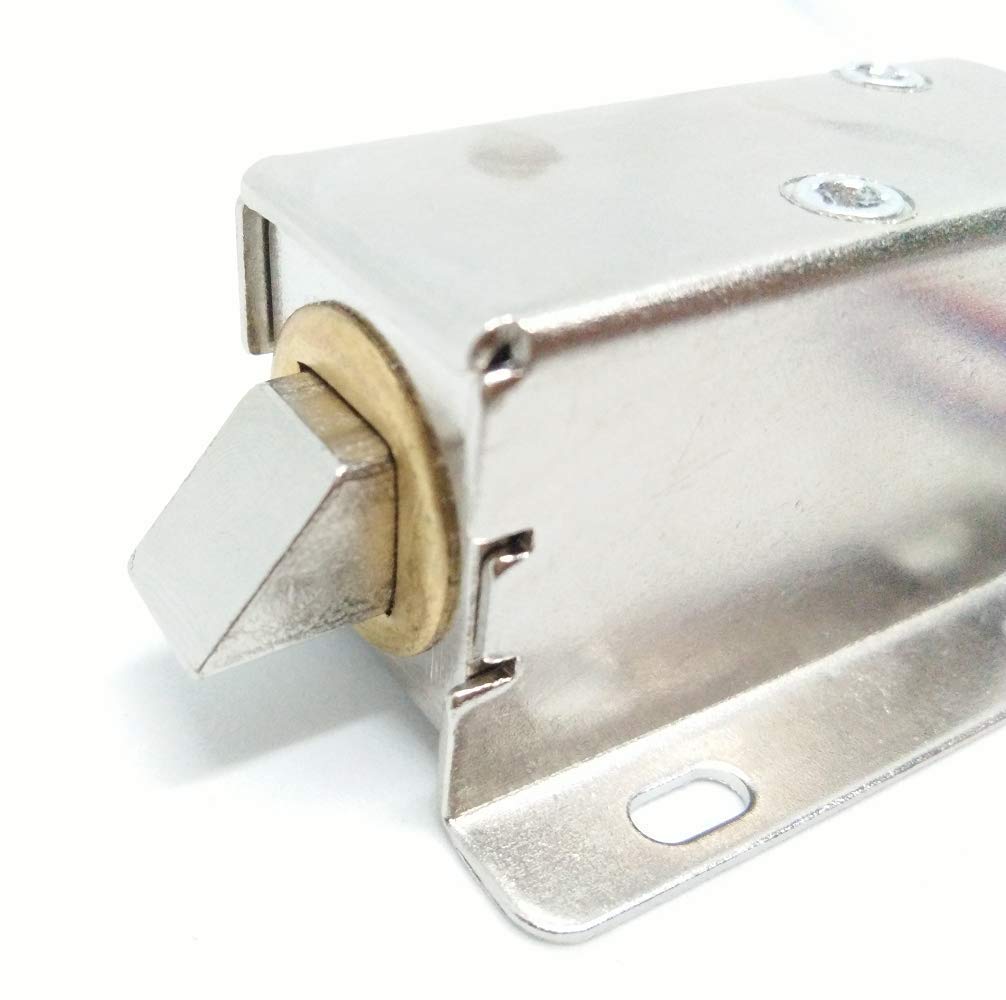

Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull from one end. This solenoid in particular is nice and strong and has a slug with a slanted cut and a good mounting bracket. It's basically an electronic lock, designed for a basic cabinet or safe or door.
Specifications:
Voltage: DC12V
Power:9.6W
Wire length:10cm/3.93inch
Current: 0.6 A, maximum :0.8 A

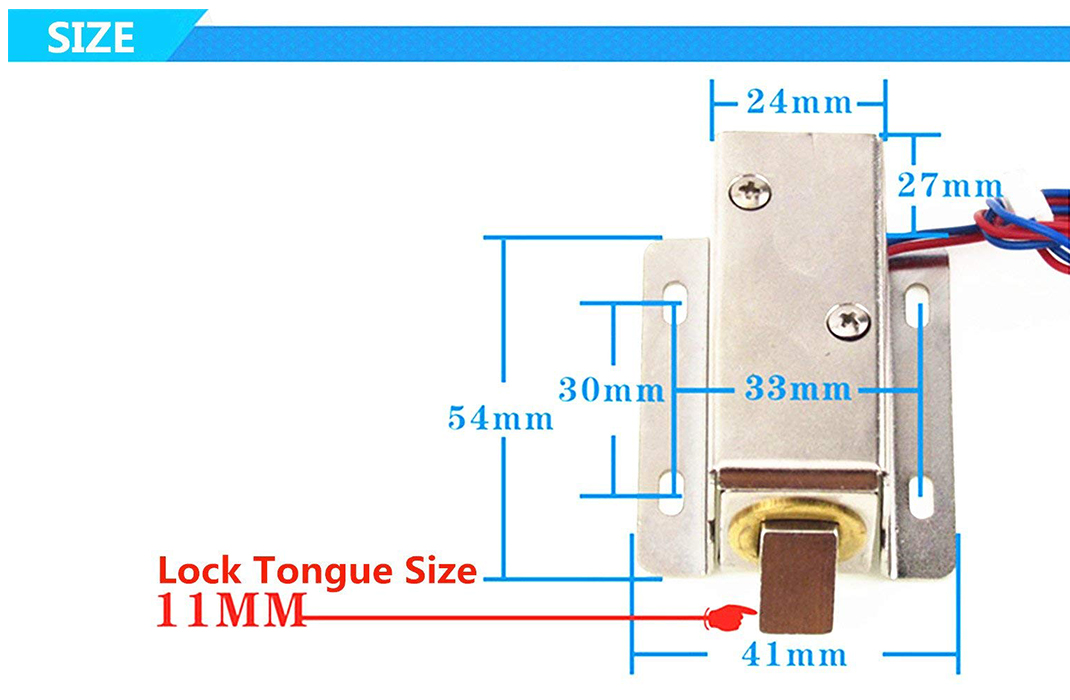

Size: 54 * 41 * 27 mm/2.12 * 1.61 * 1.06 inch
Product details
| Main Specification | |
|---|---|
| Recommended Uses For Product | Indoor or Stationary Applications |
| Manufacturer | Robocraze, Ground Floor, 912/10 Survey no. 104 4th G street, Chelekare, Kalyan Nagar, Bengaluru - 560043, roboCraze |
| Lock Type | Electronic Lock |
| Item dimensions L x W x H | 5.4 x 4.2 x 2.8 Centimeters |
| Control Method | Remote |
| Brand | Robocraze |
| Number of Items | 1 |
| Included Components | 1 x Mini Electromagnetic Control Cabinet |
| Number of Pieces | 1 |
| Material | Copper |
| Colour | Silver |
| Special Feature | Anti Theft |
| Item Weight | 100 Milligrams |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Manufacturer Part Number | TIFMC0028 |
| Material Type | Copper |
| Connectivity Protocol | Wired |
| Item details | |
| Model Number | TIFMC0028 |
| Item Type Name | Mini Electromagnetic Control Cabinet Drawer |
| Style | |
| Style Name | Modern |
| Measurements | |
| Item Dimensions | 5.4 x 4.2 x 2.8 Centimeters |
| Features & Specs | |
| Additional Features | Anti theft |
| Others | |
| Item Highlight | Compact 12V electric solenoid lock for cabinets or drawers or doors or lockers and DIY home automation projects. |
| Packer Contact Information | Ground Floor or Robocraze or 912/10 Survey no. 104 4th G street or Chelekare or Kalyan Nagar or Bengaluru - 560043 |
| Importer Contact Information | Ground Floor or Robocraze or 912/10 Survey no. 104 4th G street or Chelekare or Kalyan Nagar or Bengaluru - 560043 |
| Product Type | Mini Electromagnetic Control Cabinet Drawer |
| Manufacturer Contact Information | Robocraze, Ground Floor, 912/10 Survey no. 104 4th G street, Chelekare, Kalyan Nagar, Bengaluru - 560043 |
